Part Information

AC - AC-DELCO

All images...

 MFG Code: AC
Part Number: PF454

Description

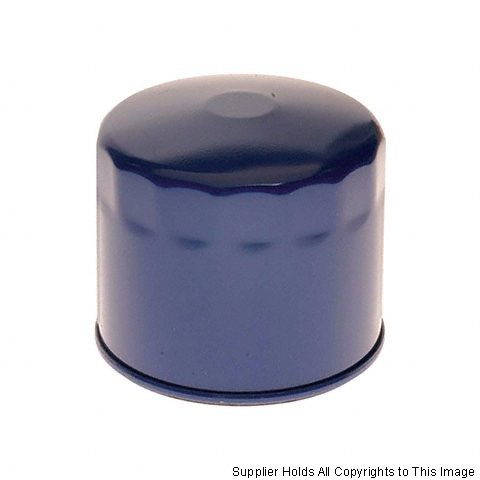

OIL FILTER

Specifications
USA Warranty: 2 YR REPLACEMENT IF DEFECTIVE
Filter Media Material: Cellulose
Filter Type: Canister
Flow Rate (gph): 180
Gasket Inside Diameter (in): 3.16
Gasket Outside Diameter (in): 3.57
Gasket Thickness (in): 0.17
Gasket Type: Gasket
Height (in): 3.08
Housing Color: Blue
Length (in): 3.8
Non Slip Grip: No
Torque Nut: No
Weight (lbs): 0.65
Width (in): 3.8
Bypass Relief Valve: Yes
Bottom Inside Diameter (in): 3.77
Burst Pressure (PSI): 200

Features & Benefits
  • Keeps abrasive particles away from bearings and other engine hydraulic components
  • Provides low restriction to ensure optimal fluid flow through the engine
  • Some ACDelco Gold parts may have formerly appeared as ACDelco Professional
  • Premium aftermarket replacement part
  • Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Avanti - Cars (1981-1991)
  • Buick - Commercial Chassis (1991-1993); Roadmaster (1991-1993)
  • Cadillac - Brougham V8 5.0 (1991-1992), V8 5.7 (1990-1992); Commercial Chassis V8 5.7 (1993); Fleetwood (1993)
  • Checker - Cars (1968-1982)
  • Chevrolet - Avalanche 2500 (2002-2006); C/K Series Pickups L6 4.1 (1982-1984), L6 4.8 (1982-1986), V8 7.4 (1998-2000); C/K Series Suburbans V8 7.4 (1998-1999); Camaro (1987), V8 5.0 (1982-1992), V8 5.7 (1987-1997); Caprice V8 5.0 (1983-1993), V8 5.7 (1985-1993); Corvette (1982-1989), V8 5.7 (1990-1991); C3500HD V8 7.4 (1998-2000), V8 8.1 (2001-2002); Express Vans V8 7.4 (1999-2000), V8 8.1 (2001-2002); G-Series Vans L6 4.1 (1982-1984); Impala V8 5.0 (1983-1985), V8 5.7 (1983-1985); K5 Blazer L6 4.1 (1982); Malibu V8 5.0 (1983); Monte Carlo V8 5.0 (1983-1988); P-Series Vans L6 4.8 (1982-1989), V8 7.4 (1999); R/V Series Pickups L6 4.8 (1987-1988); Silverado Pickups V8 8.1 (2001-2006); Silverado 2500 HD Classic V8 8.1 (2007); Silverado 3500 Classic V8 8.1 (2007); Suburbans V8 8.1 (2001-2006)
  • GMC - C-Series Pickups L6 4.8 (1982-1986), V8 7.4 (1998-2000); C/K Series Pickups L6 4.1 (1982-1984), L6 4.8 (1982-1986), V8 7.4 (1998-2000); C/K Series Suburbans V8 7.4 (1998-1999); Caballero V8 5.0 (1982); C3500HD V8 7.4 (1998-2000), V8 8.1 (2001-2002); G-Series Vans L6 4.1 (1982-1984); Jimmy L6 4.1 (1982); P-Series Vans L6 4.8 (1982-1989); R/V Series Pickups L6 4.8 (1987-1988); Savana Vans V8 7.4 (1999-2000), V8 8.1 (2001-2002); Sierra Pickups V8 8.1 (2001-2006); Sierra 2500 HD Classic V8 8.1 (2007); Sierra 3500 Classic V8 8.1 (2007); Yukons V8 8.1 (2001-2006)
  • Oldsmobile - Custom Cruiser (1991), V8 5.0 (1992), V8 5.7 (1992); Cutlass Cruiser V8 5.0 (1983); Cutlass Supreme V8 5.0 (1983)
  • Pontiac - Bonneville V8 5.0 (1985-1986); Firebird (1987), V8 5.0 (1982-1992), V8 5.7 (1987-1997); Grand Prix V8 5.0 (1985-1987); Parisienne V8 5.0 (1984-1986)
  • Studebaker - Cars (1964-1966)
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
