CARQUEST

CARQUEST Auto Parts
Part Information

BDR - CARQUEST DRUMS&ROTORS

All images...

 MFG Code: BDR
Part Number: YH140728

Description

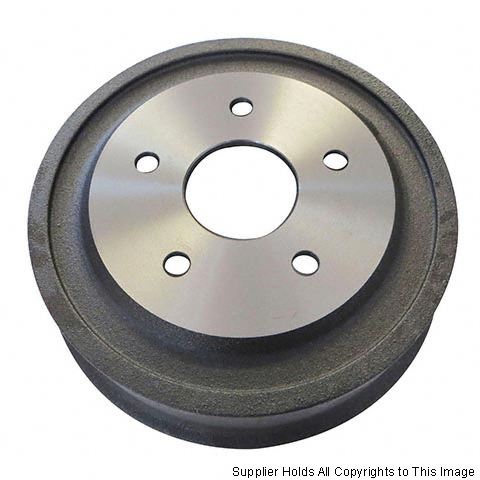

BRAKE DRUM

Specifications
ABS Sensor Ring Included: No
Bolt Circle Diameter (in): 5.5
Bolt Hole Quantity: 5
Brake Surface Width (mm): 80
Face Width (mm): 195
Height (in): 4.09
Inside Diameter (mm): 280
Material: G3000
Maximum Brake Diameter (Discard) (mm): 282.3
Mount Hole Diameter (mm): 17.2
New Or Remanufactured: New
Nominal Drum Diameter (mm): 282.3
Outer Cooling Fins: No
Outside Diameter (in): 12.88
Wheel Studs Included: No
USA Warranty: 2 YR REPLACEMENT IF DEFECTIVE

Features & Benefits
  • Manufactured to exacting quality and dimensional specifications for Superior Stopping Power
  • Exceeds ISO manufacturing guidelines (International Organization for Standardization)
  • OE based design for OE form, fit, and function
  • Proper harmonic design and balance helps to reduce brake noise
  • Optimal metallurgy and casting thickness to preventing warping
  • Ready for immediate "out-of-the-box" installation (after cleaning)
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Dodge - Ram Trucks (2000-2001) - Rear
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
