CARQUEST

CARQUEST Auto Parts

Part Information

BGS - CARQUEST BEARINGS

All images...

MFG Code: BGS
Part Number: 513288

Description

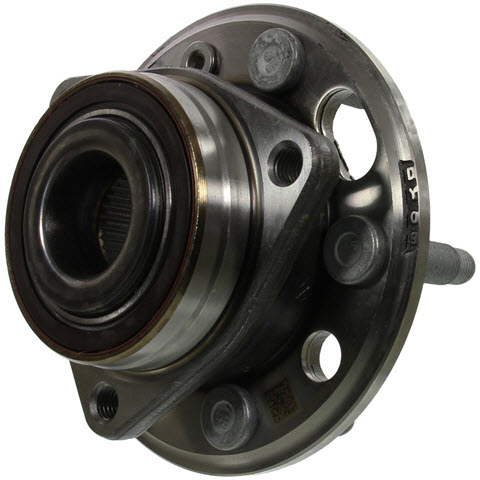

HUB ASSEMBLY

Specifications
USA Warranty: 3 YR REPLACEMENT IF DEFECTIVE
Flange Diameter (mm): 156.900
Flange Offset (mm): 42.000
Hub Pilot Diameter (mm): 91.200
Spline Quantity: 30
Wheel Pilot Diameter (mm): 66.800
Wheel Stud Quantity: 5
Flange Bolt Hole Quantity: 3
Anti Lock Brake Sensor Included: Yes
Bolt Circle Diameter (mm): 120.000
Brake Pilot Diameter (mm): 67.300

Features & Benefits
  • RELIABLE PERFORMANCE -- Precise roll-form design ensures consistent and optimal factory-installed preload to minimize excessive noise and wear
  • EXTENDED SERVICE LIFE -- Application-specific advanced raceway design reduces stress, rotation and heat on components
  • KEEPS WATER AND DIRT OUT -- Quad lip seal design inhibits damage by keeping moisture and other contaminants out
  • EASY TO INSTALL -- Engineered and designed for fast, hassle-free installation
  • CORROSION PROTECTION -- Coated wheel studs resist corrosion and rust for easier removal and proper torqueing
  • RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Buick - Allure (2010) - Rear; LaCrosse (2010-2016) - Front, (2010-2016) - Rear; Regal (2011-2017) - Front, (2011-2017) - Rear
  • Cadillac - CTS (2015-2016) - Front, V6 3.0 (2014) - Front, V6 3.6 (2014) - Front; XTS (2013-2017) - Front, (2013-2017) - Rear
  • Chevrolet - Equinox (2010-2017) - Front; Impala (2014-2020) - Front, (2014-2020) - Rear; Malibu (2013-2015) - Front, (2013-2015) - Rear; Malibu Limited (2016) - Front, (2016) - Rear
  • GMC - Terrain (2010-2017) - Front
  • Saab - 9-5 (2010-2011) - Front, (2010-2011) - Rear
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
