Part Information

BSC - ROBERT BOSCH CORP

MFG Code: BSC
Part Number: 9614

Description

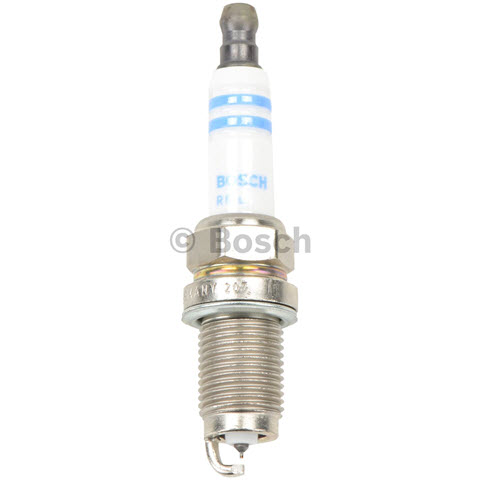

SPARK PLUG

Specifications
Center Electrode Core Material: Nickel-Yttrium and Copper and Iridium
Center Electrode Tip Material: Iridium
Ground Configuration: Standard
Ground Electrode Quantity: 1
Ground Electrode Tip Design: Tapered
Hex Size: 16
Manufacturer Heat Range: 6
Pre-Gap Size (mm): 1
Reach (mm): 19
Resistance (Ohms): 6000
Seat Type: Flat
Thread Diameter (mm): 14
USA Warranty: 7 YR REPLACEMENT IF DEFECTIVE

Features & Benefits
  • Double Iridium electrodes - iridium firing pin and iridium ground electrode inlay offer higher performance and 4 times longer life compared to standard copper spark plugs
  • OE Fine Wire design requires up to 24% less voltage to ignite
  • 360 degree continuous laser welding increases durability for increased life
  • Copper core provides broader heat range to resist pre-ignition and fouling
  • Pre-gapped and nickel plated threads allow for quick installation without adjusting the gap or applying anti-seize
  • Tapered ground electrode allows for better ignition throughout the life of the spark plug
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Acura - CSX (2011), L4 2.0 (2007-2010); MDX (2007-2009); RL (2005-2008); RSX L4 2.0 (2002-2006); TL (2004-2008); TSX (2004-2008)
  • Honda - Accord L4 2.4 (2003-2007), V6 3.0 (2003-2007); Civic L4 1.8 (2006-2011), L4 2.0 (2002-2005); CR-V (2002-2009); Element (2003-2011)
