CARQUEST

CARQUEST Auto Parts
Part Information

CCQ -

All images...

 MFG Code: CCQ
Part Number: 810-685006B

Description

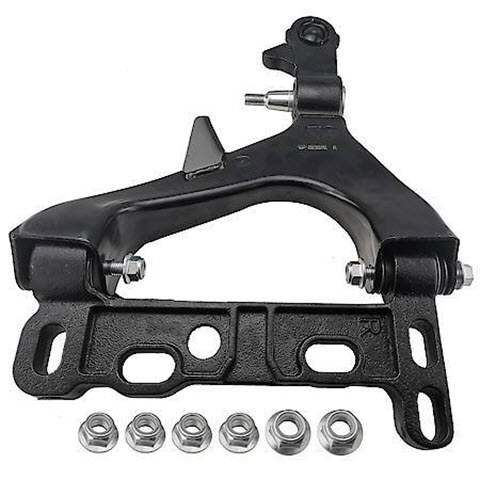

CTRL ARM W/BALL JNT

Specifications
USA Warranty: LIMITED LIFETIME REPLACEMENT
Adjustable: No
Ball Joint Mounting Type: Press In
Ball Joint Stud Length (mm): 95.5
Ball Joint Stud Type: Threaded
Ball Joint Thread Diameter (mm): 16
Bushing Material: Rubber
Bushings Included: Yes
Control Arm Color: Black
Control Arm Construction: Stamped
Control Arm Material: Stamped Steel
Control Arm Maximum Length (mm): 413.5
Control Arm Maximum Width (mm): 565
Greasable: No
Grease Fitting Included: No
Mounting Hardware Included: Yes
Mounting Hole Diameter (mm): 20.25
Mounting Hole Quantity (mm): 5
Pre-Greased: Yes

Features & Benefits
  • Application specific, direct fitment for trouble-free installation. Engineered OE Form, Fit, and Function.
  • Corrosion-resistant electro-coating on steel control arms to reduce rust and extend service life.
  • Pre-installed ball joints and bushings (when applicable) for easy installation
  • Fully polished ball studs combined with synthetic bearing technology for maintenance-free smooth operation and improved reliability
  • Hardware included for easier installation
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Buick - Rainier (2004-2007) - Front Right Lower
  • Chevrolet - Trailblazer (2002-2007) - Front Right Lower; Trailblazer EXT (2002-2006) - Front Right Lower
  • GMC - Envoy (2002-2007) - Front Right Lower; Envoy XL (2002-2006) - Front Right Lower; Envoy XUV (2004-2005) - Front Right Lower
  • Isuzu - Ascender (2003-2007) - Front Right Lower
  • Oldsmobile - Bravada (2002-2004) - Front Right Lower
  • Saab - 9-7x (2005-2007) - Front Right Lower
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
