CFI - CARQUEST FILTERS
All images...
|
|
MFG Code: CFI
Part Number: 86296
Description

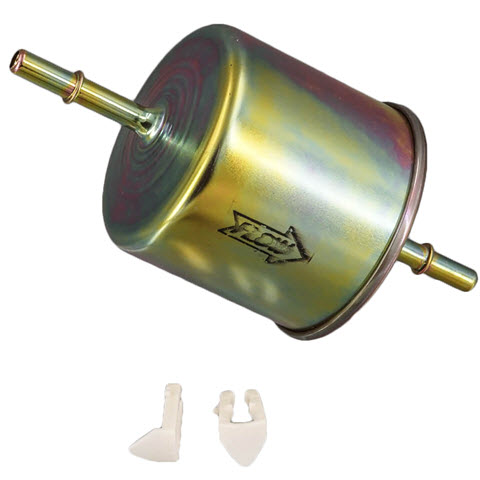

FUEL FILTER
Specifications
| Height: |
6.82 |
| Housing Material: |
Galfan |
| Outlet Outside Diameter (in): |
0.31 |
| Outside Diameter (in): |
3.11 |
| USA Warranty: |
REPLACE OR REFUND AT MGR DISCRETION |
|
|
|
Features & Benefits
- Keeps dirt, debris and contaminants from clogging fuel lines and causing erratic, unstable fuel performance
- Manufactured to a strict quality standards with 98% efficiency at a 10 micron rating.
- Provides maximum fuel system protection.
- Designed to meet or exceed Original Equipment specifications
- Protects the injectors from debris that cause damage and clogging.
- Provides less restriction preventing the fuel pump from working too hard.
- Superior materials, design and construction ensure CARQUEST fuel filters provide excellent performance under all types of operating conditions.
|
MSDS Sheets
- No MSDS sheet available
|
|
|
Application Summary
- Ford - Aerostar V6 4.0 (1991-1992); Bronco (1992-1996); E-Series Vans (1992-2000), L6 4.9 (1992-1996), V10 6.8 (1997-2002), V8 4.6 (2002), V8 5.4 (1997-2002), V8 5.8 (1992-1996), V8 7.5 (1992-1996); Escape (2008); Excursion V10 6.8 (2000-2005), V8 5.4 (2001-2005); Expedition (1997-1998); Explorer (1991-1998); F-Series Pickups (1992-1998), L6 4.9 (1992-1996), V8 5.0 (1992-1996), V8 5.8 (1992-1997), V8 7.5 (1992-1997); F-Series Super Duty Pickups V10 6.8 (1999-2004), V8 5.4 (1999-2004); F-Super Duty V8 7.5 (1992-1997); F-250 HD V8 5.8 (1997), V8 7.5 (1997); F-53 Motorhome Chassis (1992-2004); Ranger (1995-1997), V6 2.9 (1991-1992), V6 4.0 (1991-1992); Windstar (1995-1998)
- Lincoln - Navigator (1998)
- Mazda - B-Series (1995-1997); Navajo (1991-1994); Tribute (2008-2011)
- Mercury - Mariner (2008-2011); Mountaineer (1997-1998)
|
Product Bulletins
- No bulletins available
|
|
|
Interchange Numbers
- No interchange numbers available
|
Specification Documents
- No specifications available
|
|
