Part Information

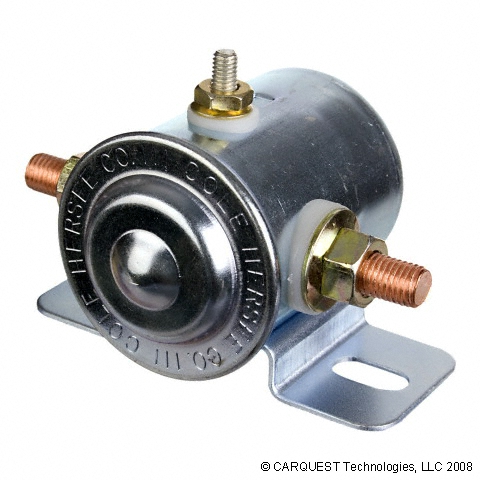

CH - COLE HERSEE COMPANY

All images...

 MFG Code: CH
Part Number: 24106-BX

Description
SOLENOID

Specifications
USA Warranty: REPLACE OR REFUND AT MGR DISCRETION
Amperage Rating (A): 85
Battery Terminals: 5/16 - 24 (35 in-lbs / 4.0 Nm)
Circuitry: Single Pole Single Throw (SPST)
Coil Studs: 10-32 (15 in-lbs / 1.7 Nm)
Contact Material: Copper
Form / Contacts: Normally Open
Insulated / Grounded: Grounded
Operating Temperature: -40 to +85 Deg. C
PVC Coated: No
Voltage (VDC): 12
UL Listed: No

Features & Benefits
  • SPST Normally open contacts.
  • Plated steel housing. Hexnuts and washers included.
  • Large (power circuit) battery studs; copper 5/16" -24 thread.
  • Small (control circuit) coil studs; steel 10-32 thread.
  • Bracket mounting holes 5/16 X 19/32" (7.9 X 15.1mm) on 2 13/64" centers (56.0mm).
  • Available with PVC coated exterior or Potted Coil interiors for harsh environments or vibration resistance.
  • Caution: Never unscrew the inner hexnuts on the studs. These keep the stud and inner wiring in place.
