CLB - HEADLAMPS AND MIN. BULBS
All images...
|
|
MFG Code: CLB
Part Number: 3457NA
Description

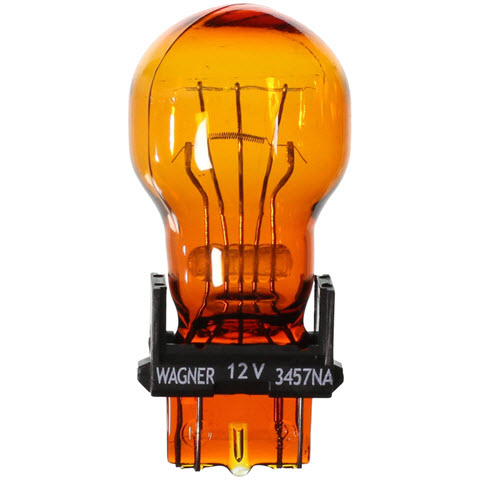

MINIATURE LAMP
Specifications
| Primary Application: |
Automotive, Park, Signal (Natural Amber) |
| Base Type: |
Double Contact Wedge |
| Max. Overall Length (in): |
2.12 |
| Max. Overall Length (mm): |
54 |
| Light Center Length (in): |
1.1 |
| Filament: |
Dual |
| Design Volts Primary: |
12.8 |
| Design Watts Primary: |
28.54 |
| Design Amps Primary: |
2.23 |
| Approx. Max Candle Power Primary: |
30 |
| Rated Avg. Life Hours Primary: |
400 |
| Filament Type Primary: |
C-6 |
| Design Volts Secondary: |
14 |
| Design Watts Secondary: |
8.26 |
| Design Amps Secondary: |
0.59 |
| Approx. Max Candle Power Secondary: |
2.2 |
| Rated Avg. Life Hours Secondary: |
5000 |
| Filament Type Secondary: |
C-6 |
| Freight Class: |
N |
| Car/Light Truck: |
Y |
| USA Warranty: |
REPLACE OR REFUND AT MGR DISCRETION |
|
|
|
Features & Benefits
- Wagner® Lighting Products has been on the leading edge of automotive lighting since the development of the sealed-beam headlamp.
- We understand the importance of OE fit and form replacement parts.
- Wagner® Lighting miniature lamps are manufactured with a continuous coil that resists shock and vibration, extending service life.
- This design also improves candlepower consistency.
- OE-Style lamps for European and Japanese applications.
- Natural amber bulbs are made from amber glass tubing to prevent cracking or peeling.
- DOT/SAE Compliant.
- Patented extra support wire in filament design.
|
MSDS Sheets
- No MSDS sheet available
|
|
|
Application Summary
- Acura - TL (2012-2014), (2012-2014) - Front; ZDX (2010-2013), (2010-2013) - Front
- Audi - A4 (2000-2006) - Front, (2000-2006) - Front Inner, (2003-2006); A4 Quattro (2000-2006) - Front, (2000-2006) - Front Inner, (2003-2006); A6 (2002-2008) - Front Inner, (2002-2011) - Front, (2006-2011); A6 Quattro (2002-2008) - Front Inner, (2002-2011) - Front, (2005-2011); RS6 (2003-2004) - Front; S4 (2000-2006) - Front, (2000-2006) - Front Inner, (2004-2006); S6 (2002-2003) - Front, (2002-2008) - Front Inner, (2007-2008)
- BMW - Alpina B7 (2007-2008), (2007-2008) - Front Inner; M5 (2000-2003) - Front; X5 (2000-2004), (2000-2006) - Front; Z3 (2002) - Rear; 320i (2016-2018), (2016-2018) - Front; 320i xDrive (2016-2018), (2016-2018) - Front; 328d (2016-2018), (2016-2018) - Front; 328d xDrive (2016-2018), (2016-2018) - Front; 328i (2016), (2016) - Front; 328i xDrive (2016), (2016) - Front; 330e (2016-2018), (2016-2018) - Front; 330i (2017-2018), (2017-2018) - Front; 330i xDrive (2017-2018), (2017-2018) - Front; 340i (2016-2018), (2016-2018) - Front; 340i xDrive (2016-2018), (2016-2018) - Front; 525i (2001-2003) - Front; 528i (2008-2010), (2008-2010) - Front; 528i xDrive (2009-2010), (2009-2010) - Front; 528xi (2008), (2008) - Front; 530i (2001-2003) - Front; 535i (2008-2010), (2008-2010) - Front; 535i xDrive (2009-2010), (2009-2010) - Front; 535xi (2008), (2008) - Front; 540i (2001-2003) - Front; 550i (2008-2010), (2008-2010) - Front; 745i (2002-2005), (2002-2005) - Front Inner; 745Li (2002-2005), (2002-2005) - Front Inner; 750i (2006-2008), (2006-2008) - Front Inner; 750Li (2006-2008), (2006-2008) - Front Inner; 760i (2004-2006), (2004-2006) - Front Inner; 760Li (2003-2008), (2003-2008) - Front Inner
- Bugatti - Cars (2006-2012)
- Buick - Regal (2012-2013), (2012-2013) - Front; Rendezvous (2004-2007), (2004-2007) - Front; Skylark (1996-1998), (1996-1998) - Front
- Cadillac - Escalade (2009-2014), (2009-2014) - Front; Escalade ESV (2009-2014), (2009-2014) - Front; Escalade EXT (2009-2013), (2009-2013) - Front
- Chevrolet - Camaro (2014-2015), (2014-2015) - Front; Cobalt (2005-2010), (2005-2010) - Front; Impala (2000-2005), (2000-2005) - Front; Malibu (2008-2010); Monte Carlo (2000-2005), (2000-2005) - Front
- Chrysler - Aspen (2007-2009), (2007-2009) - Front; Minivans (2005-2007), (2005-2007) - Front; Sebring (2007-2010), (2007-2010) - Front
- Dodge - Avenger (2008-2014), (2008-2014) - Front; Durango (2004-2009), (2004-2009) - Front; Magnum (2005-2008), (2005-2008) - Front; Minivans (2005-2007), (2005-2007) - Front; Neon (2003-2005), (2003-2005) - Front; Sprinter Vans (2003-2009) - Front, (2007-2009); SX 2.0 (2003-2005), (2003-2005) - Front; Viper (2009-2010) - Rear
- Ford - C-Max (2013-2018), (2013-2018) - Front Inner; Contour (1999-2000), (1999-2000) - Front; Crown Victoria (1997-2011), (1997-2011) - Front; Edge (2011-2014), (2011-2014) - Front; Escape (2008-2012), (2008-2012) - Front; Escort (1997-2003), (1997-2003) - Front; Explorer (2006-2010), (2006-2010) - Front; Explorer Sport Trac (2007-2010), (2007-2010) - Front; F-Series Pickups (2001-2003), (2001-2003) - Front; Flex (2009-2019), (2009-2019) - Front; Focus (2004-2011), (2004-2011) - Front; Freestar (2004-2007), (2004-2007) - Front; Fusion (2006-2012), (2006-2012) - Front; GT (2005-2006), (2005-2006) - Front; Mustang (2010-2012), (2010-2012) - Front; Police Interceptor Sedan (2013-2018), (2013-2018) - Front; Ranger (2001-2005), (2001-2005) - Front; Special Service Police Sedan (2014-2018), (2014-2018) - Front; Taurus (1996-2019), (1996-2019) - Front; Taurus X (2008-2009), (2008-2009) - Front; Thunderbird (2002-2005), (2002-2005) - Front; Transit Connect (2010-2013), (2010-2013) - Front Inner; Transit-150 (2015-2018) - Front Inner, (2015-2019), (2019) - Inner; Transit-250 (2015-2018) - Front Inner, (2015-2019), (2019) - Inner; Transit-350 (2015-2018) - Front Inner, (2015-2019), (2019) - Inner; Transit-350 HD (2015-2018) - Front Inner, (2015-2019), (2019) - Inner
- Freightliner - Vans (2007-2009)
- Honda - Accord (2013-2015) - Front; Civic (2009-2011), (2009-2011) - Front; Element (2007-2008), (2007-2008) - Front; Odyssey (2011-2017), (2011-2017) - Front; Pilot (2009-2015), (2009-2015) - Front; Ridgeline (2006-2014), (2006-2014) - Front
- Jaguar - S-Type (2000-2008), (2000-2008) - Front; X-Type (2002-2008) - Front Inner; XF (2009-2011) - Front; XFR (2010-2011) - Front; XK (2007-2009) - Front Inner, (2010-2015) - Front; XKR (2007-2009) - Front Inner
- Lamborghini - Cars (2009-2014)
- Land Rover - LR3 (2005-2007) - Front; Range Rover (2006-2009), (2006-2009) - Front; Range Rover Sport (2006-2009), (2006-2009) - Front
- Lexus - HS250h (2010-2012), (2010-2012) - Front; LX570 (2008-2011), (2008-2011) - Front; RX450h (2010-2012) - Front; SC430 (2006-2010), (2006-2010) - Front
- Lincoln - Continental (1996-2002), (1996-2002) - Front; LS (2003-2006), (2003-2006) - Front; Mark VIII (1993-1998), (1993-1998) - Front; MKS (2009-2012), (2009-2012) - Front; MKX (2011-2015), (2011-2015) - Front; MKZ (2007-2012), (2007-2012) - Front; Town Car (2004-2011), (2004-2011) - Front
- Mazda - Tribute (2010-2011), (2010-2011) - Front
- Mercedes-Benz - B Electric Drive (2014-2015), (2014-2015) - Front; B250 (2013-2018), (2013-2018) - Front; B250e (2016-2017), (2016-2017) - Front; CLA250 (2014-2018), (2014-2018) - Front; CLA45 AMG (2014-2018), (2014-2018) - Front; CLS500 (2006) - Front; CLS55 AMG (2006) - Front; CLS550 (2007-2011) - Front; CLS63 AMG (2007-2011) - Front; C230 (2008-2009) - Front; C250 (2010) - Front; C300 (2008-2010) - Front; C350 (2008-2010) - Front; C63 AMG (2008-2010) - Front; E300 (2012) - Front; E320 (2008-2009) - Front; E350 (2008-2012) - Front; E550 (2008-2012) - Front; E63 AMG (2008-2012) - Front; GLA250 (2015-2018), (2015-2018) - Front; GLA45 AMG (2015-2018), (2015-2018) - Front; GLK350 (2010-2012) - Front; GL320 (2007-2009) - Front Inner; GL350 (2010-2012) - Front Inner; GL450 (2007-2012) - Front Inner; GL550 (2008-2012) - Front Inner; ML320 (2007-2009) - Front; ML350 (2006-2011) - Front; ML450 (2010-2011) - Front; ML500 (2006-2007) - Front; ML550 (2008-2011) - Front; ML63 AMG (2007-2011) - Front; R320 (2007-2009) - Front; R350 (2006-2010) - Front; R500 (2006-2007) - Front; R550 (2008) - Front; R63 AMG (2007) - Front; Sprinter 2500 (2010-2018) - Front; Sprinter 3500 (2010-2018) - Front; SLK230 (2004), (2004) - Front; SLK250 (2012-2015) - Front; SLK280 (2006), (2006-2008) - Front; SLK300 (2009-2016) - Front; SLK32 AMG (2004), (2004) - Front; SLK320 (2004), (2004) - Front; SLK350 (2005-2006), (2005-2016) - Front; SLK55 AMG (2005-2006), (2005-2016) - Front
- Mercury - Grand Marquis (1996-2011), (1996-2011) - Front; Mariner (2005-2011), (2005-2011) - Front Inner, (2009-2011) - Front; Milan (2006-2011), (2006-2011) - Front; Monterey (2004-2007), (2004-2007) - Front; Mystique (1999-2000), (1999-2000) - Front; Sable (1996-2009), (1996-2009) - Front; Tracer (1997-1999), (1997-1999) - Front
- Mitsubishi - Eclipse (2006-2007) - Rear, (2006-2012), (2006-2012) - Front
- Nissan - Altima (2000-2012) - Front, (2007-2012); Kicks (2018), (2018) - Front; LEAF (2011-2017) - Front Inner; Maxima (2009-2014), (2009-2014) - Front; Micra (2015-2018), (2015-2018) - Front; NV200 (2013-2018), (2013-2018) - Front; Pathfinder (2007-2008), (2007-2008) - Front; Sentra (2007-2012), (2007-2012) - Front; Versa (2012-2021), (2012-2022) - Front; Versa Note (2014-2018), (2014-2018) - Front; Xterra (2002-2015), (2002-2015) - Front; 350Z (2006-2009) - Front
- Pontiac - Firebird (1998-2002), (1998-2002) - Front; Grand Am (1996-1997), (1996-1997) - Front; Grand Prix (2000-2003), (2000-2003) - Front; G5 (2007-2010), (2007-2010) - Front; Montana (2005-2009), (2005-2009) - Front
- Saturn - LW200 (2003), (2003) - Front; LW300 (2003), (2003) - Front; L200 (2003), (2003) - Front; L300 (2003-2005), (2003-2005) - Front; Vue (2002-2010), (2002-2010) - Front
- Subaru - Impreza (2008), (2008) - Front; Legacy (2008-2009), (2008-2009) - Front; Outback (2008-2009), (2008-2009) - Front
- Suzuki - XL-7 (2007-2009), (2007-2009) - Front
- Toyota - Avalon (2005-2012), (2005-2012) - Front; Camry (2007-2009), (2007-2009) - Front; Corolla (2009-2013), (2009-2013) - Front; Highlander (2011-2013), (2011-2013) - Front; Land Cruiser (2008-2011) - Front; Matrix (2009-2014), (2009-2014) - Front; RAV4 (2012-2014), (2012-2014) - Front; Sienna (2006-2021), (2006-2022) - Front; Solara (2004-2008), (2004-2008) - Front; Venza (2009-2016), (2009-2016) - Front
- Volkswagen - Cabrio (1999-2002), (1999-2002) - Front; Eos (2007-2011), (2007-2011) - Front; Golf (2000-2006), (2000-2006) - Front, (2003-2005) - Front Inner; GTI (2006), (2006) - Front; Jetta (1999-2003), (1999-2003) - Front Inner; Passat (2001-2005), (2001-2005) - Front; Routan (2009-2014), (2009-2014) - Front; Tiguan (2009-2011), (2009-2011) - Front Inner; Touareg (2008-2010) - Front
- Volvo - S40 (2000-2004), (2000-2004) - Front Inner; V40 (2000-2004), (2000-2004) - Front Inner
|
Product Bulletins
- No bulletins available
|
|
|
Interchange Numbers
- No interchange numbers available
|
Specification Documents
- No specifications available
|
|
