Part Information

CQH - GRD AUTO PARTS

All images...

 MFG Code: CQH
Part Number: 91-556410

Description

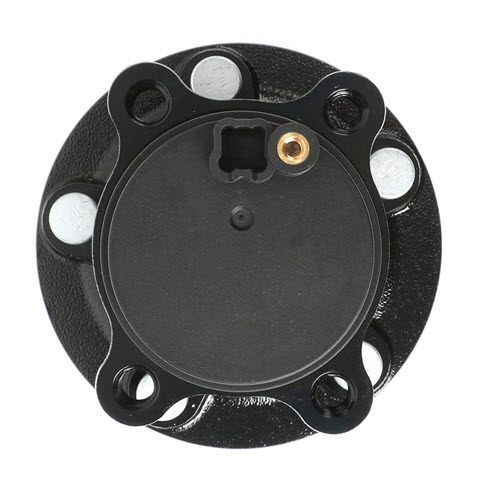

WHEEL BEAR/HUB ASSEM

Specifications
USA Warranty: 3 YR REPLACEMENT IF DEFECTIVE
Anti Lock Braking System: Yes
Anti Lock Braking System Type: Encoder, Sensor
Bolt Circle Diameter (mm): 108
Brake Pilot Diameter (mm): 63.5
Flange Bolt Hole Diameter (mm): 12.6
Flange Bolt Hole Quantity: 5
Flange Bolts Included: Yes
Flange Diameter (mm): 135.8
Flange Included: Yes
Flange Offset (mm): 48
Flange Shape: Round
Hub Pilot Diameter (mm): 80
Wheel Pilot Diameter (mm): 63.3
Wheel Stud Quantity: 5
Wheel Stud Size (mm): M12 x 1.5
Wheel Studs Included: Yes

Features & Benefits
  • Engineered for OE fit, form and function
  • Fully coated with an obsidian e-coating for enhanced rust and corrosion prevention
  • High-quality steel and surface treatments for proper fit and endurance
  • Roll-form bearing design applies exact preload for increased durability (where applicable)
  • Bearings and seals are engineered to the requirements of each specific vehicle application
  • Superior ABS sensors with matching signal and enhanced cord insulation for durability (where applicable)
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Ford - Fusion (2014-2020) - Rear, L4 1.5 (2017-2020) - Rear, L4 2.5 (2017-2020) - Rear; Police Responder Hybrid (2019-2020) - Rear; SSV Plug-In Hybrid (2019-2020) - Rear
  • Lincoln - MKZ (2013-2016) - Rear
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
