Part Information

CWD - CARQUEST WEAREVER

All images...

 MFG Code: CWD
Part Number: YH140717

Description

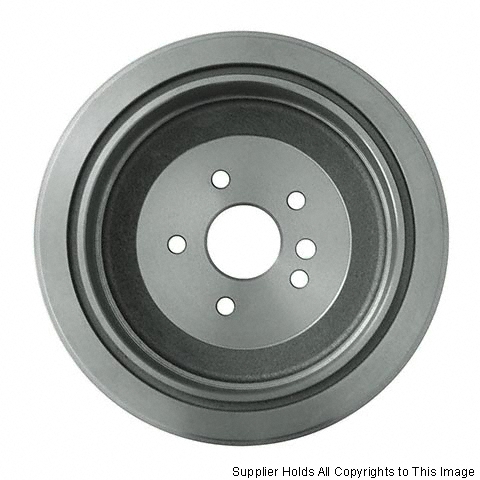

BRAKE DRUM 1 EA WREVR

Specifications
ABS Sensor Ring Included: No
Bolt Circle Diameter (in): 4.5
Bolt Hole Quantity: 5
Brake Surface Width (mm): 59.6
Face Width (mm): 184.5
Height (in): 3.09
Inside Diameter (mm): 273
Material: G3000
Maximum Brake Diameter (Discard) (mm): 251.5
Mount Hole Diameter (mm): 14.7
New Or Remanufactured: New
Nominal Drum Diameter (mm): 252
Outer Cooling Fins: Yes
Outside Diameter (in): 13.19
Wheel Studs Included: No
USA Warranty: 2 YR REPLACEMENT IF DEFECTIVE

Features & Benefits
  • Manufactured to exacting quality and dimensional specifications for Superior Stopping Power
  • Exceeds ISO manufacturing guidelines (International Organization for Standardization)
  • OE based design for OE form, fit, and function
  • Proper harmonic design and balance helps to reduce brake noise
  • Optimal metallurgy and casting thickness to preventing warping
  • Ready for immediate "out-of-the-box" installation (after cleaning)
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Toyota - Sienna (1998-2003) - Rear
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
