Part Information

DOR - DORMAN

All images...

 MFG Code: DOR
Part Number: 610-486

Description

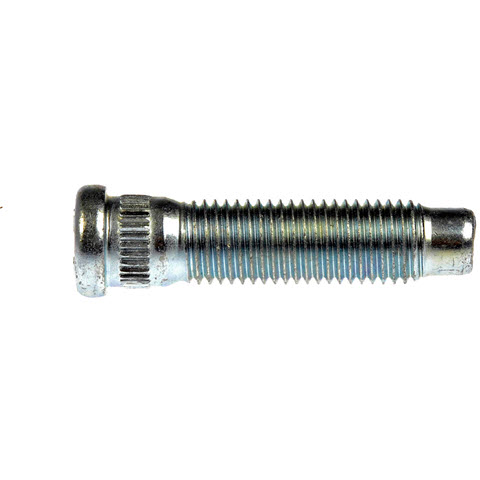

WHEEL STUD M12-1.5

Specifications
USA Warranty: 1 YR REPLACEMENT IF DEFECTIVE
Head Diameter (mm): 16
Knurl Diameter (mm): 12.8
Material: Steel
SAE or Metric: Metric
Shoulder Length (in): 0.369
Style: Serrated Stud
Thread Diameter (mm): M12
Thread Length (mm): 33.2
Thread Pitch (mm): 1.5
Thread Size (mm): M12-1.50
Under Head Length (mm): 51
Thread Direction: Right Hand Thread
Quick-Start Nose: Yes

Features & Benefits
  • Durable material - carbon steel meets SAE automotive industry standards for strength and hardness
  • Corrosion tested - 72-hour salt spray testing simulates three years of corrosion resistance
  • Tensile tested - lug studs undergo industry-standard proof-load testing to ensure strength
  • Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Buick - Rainier (2004-2005) - Front, (2004-2005) - Rear
  • Chevrolet - Colorado (2004-2005) - Rear; SSR (2003-2006) - Front, (2003-2006) - Rear; Trailblazer (2002-2005) - Front, (2002-2005) - Rear; Trailblazer EXT (2002-2005) - Front, (2002-2005) - Rear
  • GMC - Canyon (2004-2005) - Rear; Envoy (2002-2005) - Front, (2002-2005) - Rear; Envoy XL (2002-2005) - Front, (2002-2005) - Rear; Envoy XUV (2004-2005) - Front, (2004-2005) - Rear
  • Isuzu - Ascender (2003-2005) - Front, (2003-2005) - Rear
  • Oldsmobile - Bravada (2002-2004) - Front, (2002-2004) - Rear
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
