Part Information

DOR - DORMAN

All images...

 MFG Code: DOR
Part Number: 610-533

Description

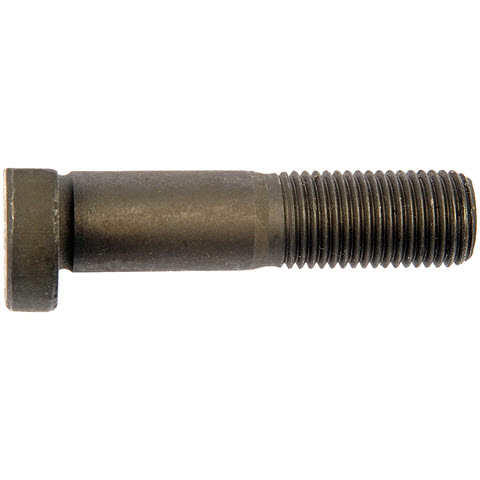

WHEEL BOLT M14-1.50

Specifications
USA Warranty: 1 YR REPLACEMENT IF DEFECTIVE
Head Diameter (mm): 24.5
Knurl Diameter (mm): 14.06
Material: Steel
Quick-Start Nose: No
SAE or Metric: Metric
Shoulder Length (in): 1.055
Style: Non-serrated Stud with Clip Head
Thread Diameter (mm): M14
Thread Direction: Right Hand Thread
Thread Length (mm): 29.6
Thread Size (mm): M14-1.50
Under Head Length (mm): 57.6
Thread Pitch (mm): 1.5

Features & Benefits
  • Durable material - carbon steel meets SAE automotive industry standards for strength and hardness
  • Corrosion tested - 72-hour salt spray testing simulates three years of corrosion resistance
  • Tensile tested - lug studs undergo industry-standard proof-load testing to ensure strength
  • Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Dodge - Sprinter Vans (2003-2006) - Rear
  • Freightliner - Vans (2003-2006)
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
