Part Information

DWK - DRIVEWORKS

All images...

 MFG Code: DWK
Part Number: NT512310

Description

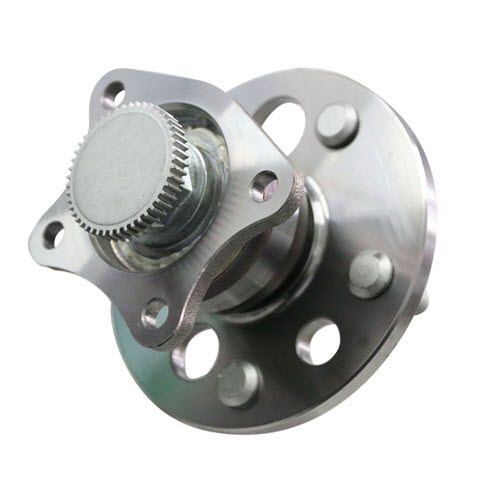

HUB & BEARING ASSY 1 EA DRIVE

Specifications
Anti Lock Braking System: Yes
Anti Lock Braking System Type: Tone Ring
Bolt Circle Diameter (mm): 114.3
Brake Pilot Diameter (mm): 62
Flange Bolt Hole Quantity: 4
Flange Bolts Included: No
Flange Diameter (mm): 152
Flange Offset (mm): 74.8
Flange Shape: Modified
Hub Pilot Diameter (mm): M12×1.5
Meets or Exceeds OEM Specifications: Yes
Wheel Pilot Diameter (mm): 60
Wheel Stud Quantity: 5
Wheel Stud Size (mm): M12×1.5
Wheel Studs Included: Yes
USA Warranty: 1 YR REPLACEMENT IF DEFECTIVE

Features & Benefits
  • Constructed from quality materials for extended durability
  • Integral raceway provides proper clearance between the ball and bearing riding surfaces
  • Precision-matched components deliver smooth and quiet operation
  • Manufactured to strict engineering quality standards
  • Quality ABS leads are 100% tested to ensure longevity and performance (where applicable)
  • Go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components (where applicable)
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Toyota - Avalon (1995-2004) - Rear; Camry (1992-2001) - Rear; Solara (1999-2003) - Rear
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
