Part Information

DWK - DRIVEWORKS

All images...

 MFG Code: DWK
Part Number: NT513270

Description

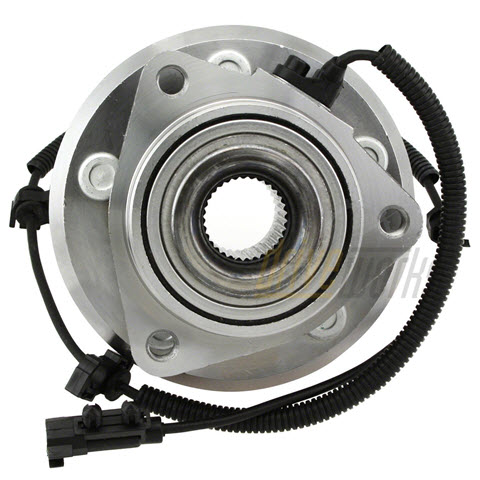

HUB AND BEARING ASSE 1 EA DRIV

Specifications
Anti Lock Braking System: Yes
Anti Lock Braking System Type: Sensor
Bolt Circle Diameter (mm): 114.3
Brake Pilot Diameter (mm): 71.9
Flange Bolt Hole Quantity: 3
Flange Bolts Included: No
Flange Diameter (mm): 154
Flange Offset (mm): 48.5
Flange Shape: Modified
Hub Pilot Diameter (mm): 92
Meets or Exceeds OEM Specifications: Yes
Spline Quantity: 32
Wheel Pilot Diameter (mm): 71.4
Wheel Stud Quantity: 5
Wheel Stud Size (in): 1/2-20UNF
Wheel Studs Included: Yes
USA Warranty: 1 YR REPLACEMENT IF DEFECTIVE

Features & Benefits
  • Constructed from quality materials for extended durability
  • Integral raceway provides proper clearance between the ball and bearing riding surfaces
  • Precision-matched components deliver smooth and quiet operation
  • Manufactured to strict engineering quality standards
  • Quality ABS leads are 100% tested to ensure longevity and performance (where applicable)
  • Go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components (where applicable)
  • Go through a vacuum vulcanization process to enhance the structural integrity of the seal and rubber components (where applicable)
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Dodge - Nitro (2007-2011) - Front
  • Jeep - Liberty (2008-2012) - Front
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
