Part Information

DWK - DRIVEWORKS

All images...

 MFG Code: DWK
Part Number: NT541001

Description

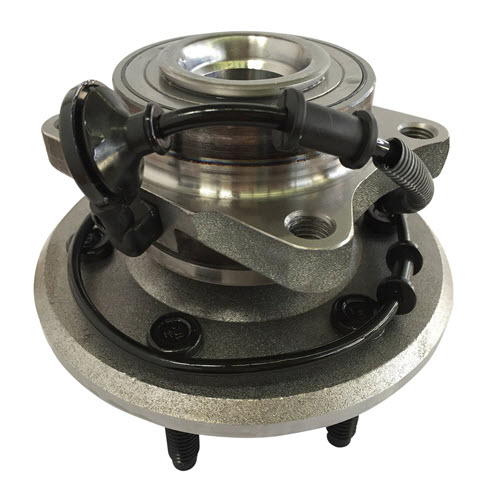

HUB & BEARING ASSY 1 EA DRIVE

Specifications
Anti Lock Braking System: Yes
Anti Lock Braking System Type: Sensor
Bolt Circle Diameter (mm): 134.8
Brake Pilot Diameter (mm): 90
Flange Bolt Hole Quantity: 4
Flange Bolts Included: No
Flange Diameter (mm): 182.5
Flange Shape: Modified
Hub Pilot Diameter (mm): 99.35
Meets or Exceeds OEM Specifications: Yes
Spline Quantity: 33
Wheel Pilot Diameter (mm): 86.8
Wheel Stud Quantity: 6
Wheel Stud Size (mm): M14 x 2
Wheel Studs Included: Yes
USA Warranty: 1 YR REPLACEMENT IF DEFECTIVE

Features & Benefits
  • High quality materials ensure long service life
  • Integral raceway provides proper clearance between the roller and bearing riding surfaces
  • Precision-matched components deliver smooth and quiet operation
  • Broad range of designs and custom-tailored to specific applications and operating conditions
  • ABS Components and Bearing Preload 100% Tested To OE Specs
  • Premium seals, both inboard and outboard, protect the bearing
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Ford - Expedition (2003-2006) - Rear
  • Lincoln - Navigator (2003-2006) - Rear
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
