Part Information

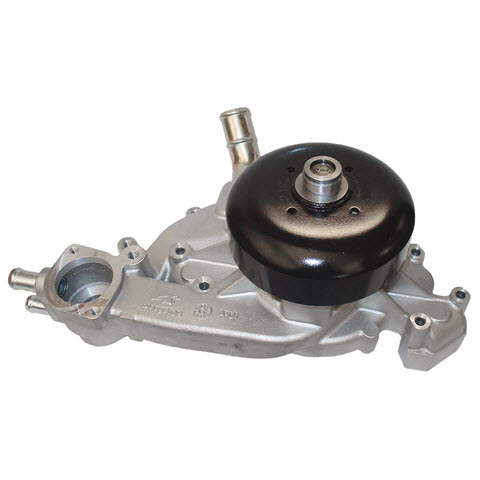

DWP - REMAN WATER PUMPS

All images...

MFG Code: DWP
Part Number: 58-562

Description
WATER PUMP

Specifications
Casting Number: 12604746
Fan Clutch Included: No
Housing Material: Aluminum
Hub Height (mm): 167
Impeller Material: Steel
Impeller Rotation: Reverse
Impeller Vane Quantity: 7
Includes Back Housing: No
Installation Warnings: Yes
Mounting Hardware Included: No
Mounting Hole Quantity: 6
New Or Remanufactured: New
Pulley Included: Yes
Pulley Outside Diameter (mm): 148.59
Thermostat And Housing Included: No
Water Pump Drive Type: Serpentine Belt
USA Warranty: 2 YR REPLACEMENT IF DEFECTIVE

Features & Benefits
  • This pump is used on accessory belt driven applications
  • Used mostly on models equipped with a fan clutch
  • It is highly recommended that the fan clutch be replaced with the water pump
  • All gaskets or seals necessary for installation are supplied with pump
  • Durable housing features precisely machined mounting surfaces for proper sealing
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Buick - Rainier V8 5.3 (2004-2006)
  • Cadillac - Escalade (2002-2006); Escalade ESV (2003-2006); Escalade EXT (2002-2006)
  • Chevrolet - Avalanche 1500 (2002-2006); Express Vans (2005), V8 4.8 (2003-2006), V8 5.3 (2003-2006), V8 6.0 (2003-2006); Silverado Pickups (1999-2006), V8 4.8 (1999-2006), V8 5.3 (1999-2006), V8 6.0 (2001-2006); Suburbans (2000-2006), V8 6.0 (2001-2006); SSR (2003-2006); Tahoe (2001-2006), V8 4.8 (2000), V8 5.3 (2000); Trailblazer V8 5.3 (2006), V8 6.0 (2006); Trailblazer EXT V8 5.3 (2003-2006); W-Series Tiltmasters V8 6.0 (2003-2006)
  • GMC - Envoy V8 5.3 (2005-2006); Envoy XL V8 5.3 (2003-2006); Envoy XUV V8 5.3 (2004-2005); Savana Vans (2004-2005), V8 4.8 (2003-2006), V8 5.3 (2003-2006), V8 6.0 (2003-2006); Sierra Pickups (1999-2006), V8 4.8 (1999-2006), V8 5.3 (1999-2006), V8 6.0 (2001-2006); W-Series V8 6.0 (2003-2006); Yukons (2000-2006), V8 4.8 (2000), V8 5.3 (2000), V8 6.0 (2001-2006)
  • Hummer - H2 (2003-2006)
  • Isuzu - Ascender V8 5.3 (2003-2006); NPR V8 6.0 (2003-2006); NPR-HD V8 6.0 (2003-2006)
  • Saab - 9-7x V8 5.3 (2005-2006)
  • Workhorse - Vans (2004-2005)
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
