Part Information

FNY - FORNEY INDUSTRIES INC

All images...

 MFG Code: FNY
Part Number: 307

Description
FORNEY 306 AND 332 KIT

Specifications
Main Voltage: 120V
Wire Type: MIG/Flux Cored
Protection: Automatic Thermal Overload
Cabinet Material: Scratch Resistant Metal
Max OCV: 30V
Duty Cycle: 40% @ 60 Amps
Output Range: 40 Amps- 130 Amps
Wire Diameter: .024", .030", .035"
Weld Thickness: 1/4"
Internal Cooling Fan: Yes
Weight: 53 Lbs. (24.04 Kg)
Cart Dimensions: 11-1/2" x 27-1/2"
Cart Levels: 3
Cart Material: Steel
Cart Materials Thickness: 1.0mm
Cart Max Weight Capacity: 90lbs (40.8 kg)
USA Warranty: REPLACE OR REFUND AT MGR DISCRETION

Features & Benefits

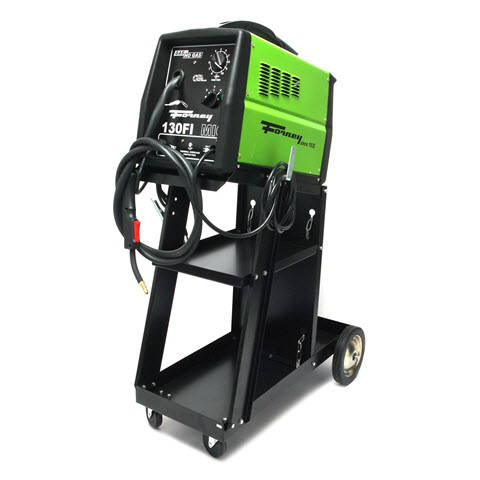

  • Forney 130FI MIG/Flux Cored Wire Welder and Portable Welding Cart Kit.
  • The kit includes Forney 00306, 130FI 120V Welder and Forney 00332, Portable Welding Cart; plus, welder operating manual, cart set-up instructions, face shield, combination chipping hammer and brush, welding torch, ground clamp and roll of flux cored wire.
