Part Information

FP - CARQUEST FUEL PUMPS

All images...

 MFG Code: FP
Part Number: E2428516

Description

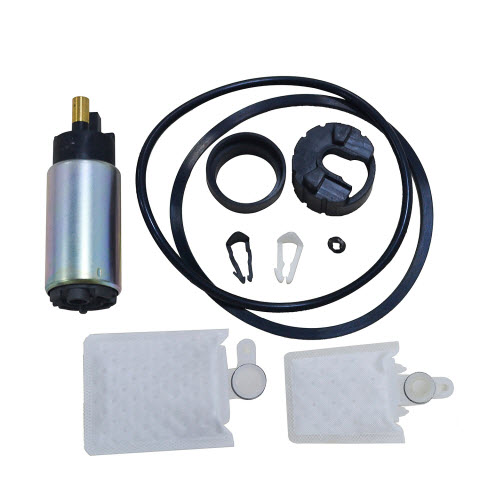

ELECTRICAL FUEL PUMP

Specifications
Pressure Range: 87-116
Pressure Rating (PSI): 43.5
PSI Shut Off (PSI): 87-116
Pump Only Or Module: Pump Only
Pump Tag Number: E2314
Pump Type: Turbine
Regulator Included: No
Seal And Lock Ring Included: Yes
Sender Included: No
Sending Unit Included: No
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 2
Type: Turbine
United States Coast Guard Approved: Yes
Universal Or Specific Fit: Universal
Voltage (VDC): 12
Wire Quantity: 0
Wiring Harness Included: No
Working Pressure (PSI): 43.5
Inlet Outside Diameter (mm): 11
Inlet Quantity: 1
Inline Pump: No
Internal Or External: Internal
Length (mm): 112.2
Maximum Flow Rating (gph): 37.03
Maximum Pressure (PSI): 116
Minimum Flow Rate (gph): 37.03
Amperage Draw (A): 8.5
Compatible Fuel(s): Gasoline
Connector Quantity: 1
Minimum Pressure (PSI): 87
Mounting Bracket Included: No
Electric: Yes
Electric Or Mechanical: Electric
Mounting Hardware Included: Yes
Mounting Type: In Tank
Float Included: No
Free Flow Rating (gph): 37.03
Negative Ground: No
New Or Remanufactured: New
Fuel Pump Inlet Type: Turbine
Fuel Sending Unit Included: No
Gasket Or Seal Included: Yes
Outlet Outside Diameter (mm): 8.85
Outlet Quantity: 1
Performance Rated: Yes
Gasket Or Seal Material: Yes
Gaskets Included: Yes
GPH (Free Flow) Rating (gph): 37.03
Ground: No
Height (mm): 38
In Tank: Yes
Inlet Diameter (mm): 11
Port Quantity: 1
USA Warranty: LIMITED LIFETIME REPLACEMENT

Features & Benefits
  • Meets or exceeds OE specifications for fit, form and function
  • 100% carbon commutators provide resistance to aggressive fuels and double the life expectancy of the pump
  • OE upgraded turbine impellers greatly reduce fuel pulsation
  • All fuel pumps are 100% performance tested
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Ford - Escape (2008), L4 2.3 (2005-2007), L4 2.3 (2005-2008) - In-Tank, V6 3.0 (2004-2008) - In-Tank, V6 3.0 (2005-2007); F-Series Super Duty Pickups V10 6.8 (1999) - Rear, V10 6.8 (1999-2010), V10 6.8 (2008-2010) - In-Tank, V8 5.4 (1999) - Rear, V8 5.4 (1999-2010), V8 5.4 (2008-2010) - In-Tank; Focus (2005-2007), (2005-2007) - In-Tank; Taurus (2007), V6 3.0 (1996-2002) - In-Tank, V6 3.0 (2002-2006); Thunderbird (2002), (2002) - In-Tank
  • Jaguar - S-Type (2000-2002), (2000-2002) - In-Tank
  • Lincoln - LS (2000-2002), (2000-2002) - In-Tank
  • Mazda - Tribute L4 2.3 (2008), L4 2.3 (2008) - In-Tank, V6 3.0 (2008), V6 3.0 (2008) - In-Tank
  • Mercury - Mariner (2005) - In-Tank, (2008), L4 2.3 (2005-2007), L4 2.3 (2006-2008) - In-Tank, V6 3.0 (2005-2007), V6 3.0 (2006-2008) - In-Tank; Sable (1996-2002) - In-Tank, (2002), V6 3.0 (2003-2005)
