Part Information

FP - CARQUEST FUEL PUMPS

All images...

 MFG Code: FP
Part Number: FG0202

Description

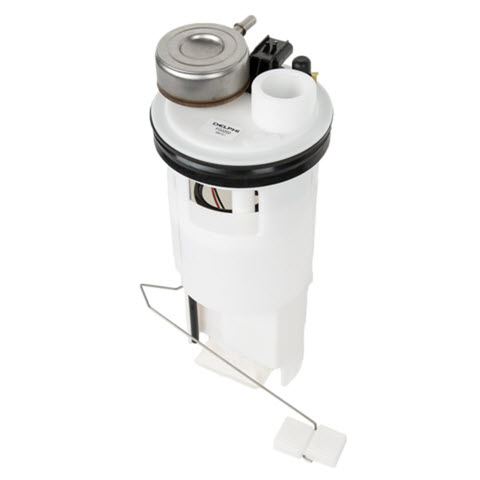

FUEL PUMP MODULE

Specifications
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
Voltage (VDC): 12.0
Average Current Draw (A): 7
Average Flow Rating (gph): 29
Fuel Type: Gas
Gasket Or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal Or External Strainer: External
Lock Ring Included: No
Maximum Pressure (PSI): 15.0
Outlet Outside Diameter (in): 0.375
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty (Ohms): 114.0
Resistance Ohms Full (Ohms): 4.0
USA Warranty: LIMITED LIFETIME REPLACEMENT

Features & Benefits
  • Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
  • Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
  • Lower amperage draws less load on vehicle's electrical system
  • Part is validated, tested and matched to the right vehicle application
  • Always be sure to check and clean fuel tank to avoid unnecessary returns
  • Lower failure rates due to its innovative design and durability
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Dodge - Ram Trucks V10 8.0 (1995), V6 3.9 (1995), V8 5.2 (1995), V8 5.9 (1995)
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
