Part Information

FP - CARQUEST FUEL PUMPS

All images...

 MFG Code: FP
Part Number: FG0808

Description

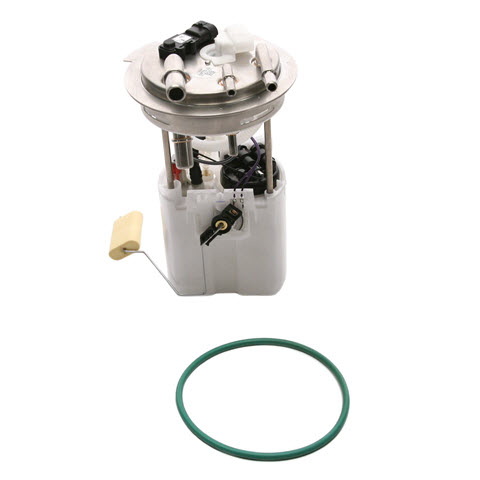

FUEL PUMP MODULE

Specifications
Average Current Draw (A): 9
Average Flow Rating (gph): 30
Fuel Type: Gas
Gasket Or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal Or External Strainer: Internal
Lock Ring Included: No
Maximum Pressure (PSI): 80.0
Outlet Outside Diameter (in): 0.375
Outlet Quantity: 3
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty (Ohms): 250.0
Resistance Ohms Full (Ohms): 40.0
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
Voltage (VDC): 12.0
USA Warranty: LIMITED LIFETIME REPLACEMENT

Features & Benefits
  • Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
  • Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
  • Lower amperage draws less load on vehicle's electrical system
  • Part is validated, tested and matched to the right vehicle application
  • Always be sure to check and clean fuel tank to avoid unnecessary returns
  • Lower failure rates due to its innovative design and durability
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Cadillac - Escalade (2004-2007)
  • Chevrolet - Tahoe V8 4.8 (2004-2007), V8 5.3 (2004-2007)
  • GMC - Yukons V8 4.8 (2004-2007), V8 5.3 (2004-2007), V8 6.0 (2004-2006), V8 6.2 (2007)
