Part Information

FP - CARQUEST FUEL PUMPS

MFG Code: FP
Part Number: FG1293

Description

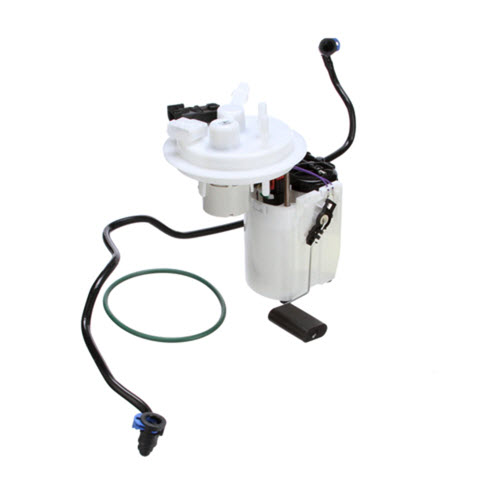

FUEL PUMP MODULE

Specifications

Average Current Draw (A):	10
Average Flow Rating (gph):	20
Gasket Or Seal Included:	Yes
In Tank or External:	In Tank
Inlet Type:	Strainer
Internal Or External Strainer:	Internal
Lock Ring Included:	No
Maximum Pressure (PSI):	109.0
Outlet Outside Diameter (in):	0.375
Outlet Quantity:	3
Outlet Type:	Quick Connect
Pump Type:	Electric
Regulator Included:	Yes
Resistance Ohms Empty (Ohms):	250.0
Resistance Ohms Full (Ohms):	40.0
Strainer Included:	Yes
Terminal Gender:	Male
Terminal Quantity:	4
Terminal Type:	Blade
Voltage (VDC):	12.0
USA Warranty:	LIMITED LIFETIME REPLACEMENT


Features & Benefits Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading Lower amperage draws less load on vehicle's electrical system Part is validated, tested and matched to the right vehicle application Always be sure to check and clean fuel tank to avoid unnecessary returns Lower failure rates due to its innovative design and durability	MSDS Sheets - No MSDS sheet available

Application Summary Chevrolet - Malibu L4 2.4 (2009-2012), V6 3.5 (2009-2010), V6 3.6 (2009-2012) Pontiac - G6 L4 2.4 (2009-2010), V6 3.5 (2009-2010), V6 3.6 (2009), V6 3.9 (2009) Saturn - Aura L4 2.4 (2009), V6 3.6 (2009)	Product Bulletins - No bulletins available

Interchange Numbers - No interchange numbers available	Specification Documents - No specifications available
