CARQUEST

CARQUEST Auto Parts
Part Information

FP - CARQUEST FUEL PUMPS

All images...

 MFG Code: FP
Part Number: M3496271

Description

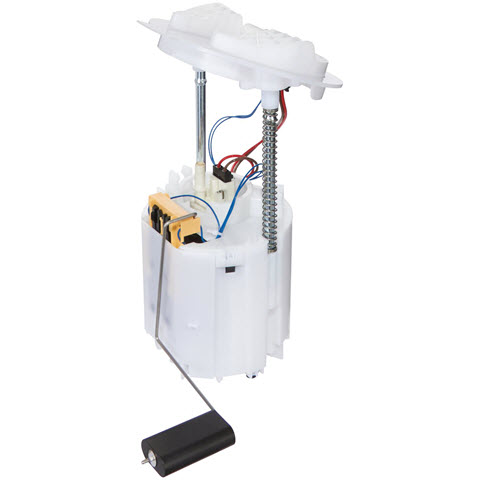

FUEL MODULE ASSEMBLY

Specifications
Inlet Type: Strainer
Maximum Flow Rating (GPH): 85
Maximum Pressure (PSI): 120
Outlet Outside Diameter (in): 5/16
Outlet Type: Quick Connect
Voltage (VDC): 12
USA Warranty: LIMITED LIFETIME REPLACEMENT

Features & Benefits
  • Meets or exceeds OE specifications for fit, form and function
  • 100% carbon commutators provide resistance to aggressive fuels and double the life expectancy of the pump
  • OE upgraded turbine impellers greatly reduce fuel pulsation
  • All fuel pumps are 100% performance tested
  • Upgraded guide rods and springs that are mounted internally on all possible applications
  • Increased rubber footings that are E85 compatible
  • Includes installation gaskets or seals where applicable
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Chrysler - 300 (2005-2019) - Left, V6 2.7 (2006-2010) - Left, V6 3.5 (2006-2010) - Left, V6 3.6 (2011-2015) - Left, V8 5.7 (2006-2015) - Left, V8 6.1 (2006-2010) - Left, V8 6.4 (2012-2013) - Primary
  • Dodge - Challenger (2008-2010) - Left, V6 3.6 (2013-2016) - Left, V8 5.7 (2011-2019) - Left; Charger V6 2.7 (2006-2010) - Left, V6 3.5 (2006-2010) - Left, V6 3.6 (2011-2014) - Left, V8 5.7 (2006-2016) - Left, V8 6.1 (2006-2010) - Left; Magnum (2005-2008) - Left, V6 2.7 (2006-2008) - Left, V6 3.5 (2006-2008) - Left, V8 5.7 (2006-2008) - Left
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
