Part Information

FP - CARQUEST FUEL PUMPS

All images...

 MFG Code: FP
Part Number: SP3682M

Description

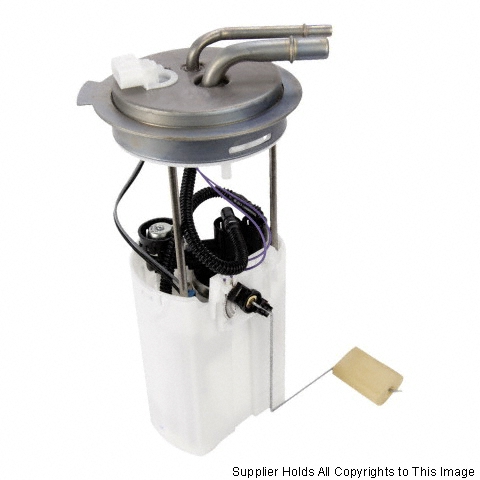

FUEL PUMP MODULE

Specifications
Amperage Draw: < or equal to 9.00
Connector Gender: Male
Connector Shape: Oval
Electric Or Mechanical: Electrical
Fuel Type(s): Gas
Gaskets Included: Yes
Height: 14.00
In Tank: Yes
In Tank or External: In Tank
Inlet Quantity: 0
Inline Pump: No
Minimum Flow Rate: 58.20
Minimum Pressure Rate: 56.60
Mounting Hardware Included: Yes
Negative Ground: Yes
Ohms Empty: 250.00
Ohms Full: 40.00
Outlet Diameter (in): 3/8
Outlet Quantity: 1
Outlet Type: Quick Connect
Pin Quantity: 4
Pin Shape: Flat
Port Quantity: 2
Pump Only Or Module: MODULE
Resistance Range: 250.00-40.00
Sender Included: Yes
Strainer Included: Yes
Weight: 3.60
Wiring Harness Included: No
USA Warranty: 1 YR REPLACEMENT IF DEFECTIVE

Features & Benefits
  • Every single pump is 100% tested throughout the entire manufacturing process for worry free, out-of-the-box performance
  • Triple barb hose fitting provides superior, long-lasting seal
  • Superior return porting for optimum fuel flow
  • Enhanced pump to flange harness design provides worry-free electrical performance
  • Ceramic sender card and float arm that utilizes vehicle-specific geometry to ensure accurate fuel gauge readings for each and every application
  • Gradient density, dual zone filtration designed for better contamination resistance
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Chevrolet - Express Vans V8 6.0 (2004-2006)
  • GMC - Savana Vans V8 6.0 (2004-2006)
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
