Part Information

FP - CARQUEST FUEL PUMPS

All images...

MFG Code: FP
Part Number: SP6625M

Description

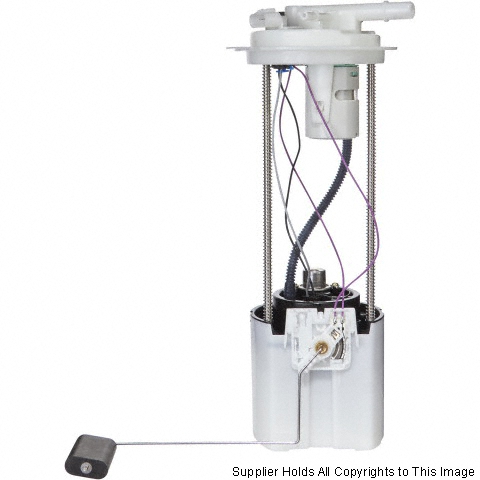

FUEL PUMP ASSY

Specifications
Gaskets Included: Yes
Height (in): 16.34
Weight (lbs): 4.14
Maximum Pressure Range (PSI): 62.35
Amperage Draw (A): < or equal to 10.00
Rheo Stat Range (Ohms): 250.00 - 40.00
Resistance Empty (Ohms): 250
Resistance Full (Ohms): 40
Inlet Quantity: 0
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (in): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Minimum Free Flow Rate (gph): 54.15
Minimum Pressure Range (PSI): 56.55
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In-Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts (VDC): 12
Max Free Flow Rate (gph): 63.44
USA Warranty: REPLACE OR REFUND AT MGR DISCRETION

Features & Benefits
- No features/benefits available
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Chevrolet - Silverado Pickups V6 4.3 (2009-2013), V8 6.0 (2009-2010)
  • GMC - Sierra Pickups V6 4.3 (2009-2013), V8 6.0 (2009-2010)
