CARQUEST

CARQUEST Auto Parts

Part Information

FP - CARQUEST FUEL PUMPS

All images...

MFG Code: FP
Part Number: SP7080M

Description

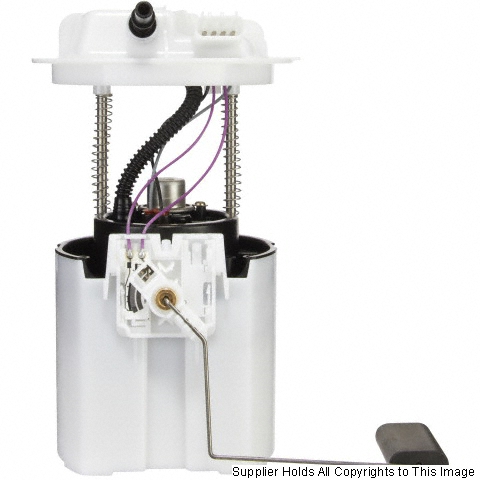

FUEL PUMP MODULE

Specifications
Amperage Draw (A): < or equal to 14.00
Compatible Fuels: Flex
Connector Gender: Male
Connector Shape: Oval
Gaskets Included: Yes
Hardware Included: Yes
Height (in): 10.40
Inlet Quantity: 0
Inlet Type: Quick Connect
Inline Pump: No
In-Tank: Yes
Maximum Flow Rating (GPH): 72.00
Maximum Pressure (PSI): 62.40
Minimum Free Flow Rate (GPH): 63.00
Minimum Pressure Range (PSI): 56.55
Negative Ground: Yes
Outlet Diameter (in): 3/8
Outlet Quantity: 1
Outlet Type: Quick Connect
Pin Count: 4
Pin Shape: Flat
Resistance Empty (Ohms): 990.00
Resistance Full (Ohms): 50.00
Rheo Stat Range (Ohms): 990.00-50.00
Strainer Included: Yes
Voltage (VDC): 12
Wiring Harness Included: No
Weight (lbs): 3.65
USA Warranty: REPLACE OR REFUND AT MGR DISCRETION

Features & Benefits
- No features/benefits available
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Chrysler - Minivans (2011-2016)
  • Dodge - Minivans (2011-2020)
  • Ram - C/V (2012-2015)
  • Volkswagen - Routan (2011-2014)
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
