CARQUEST

CARQUEST Auto Parts
Part Information

GST - GAS TANKS

All images...

 MFG Code: GST
Part Number: TOP10A

Description

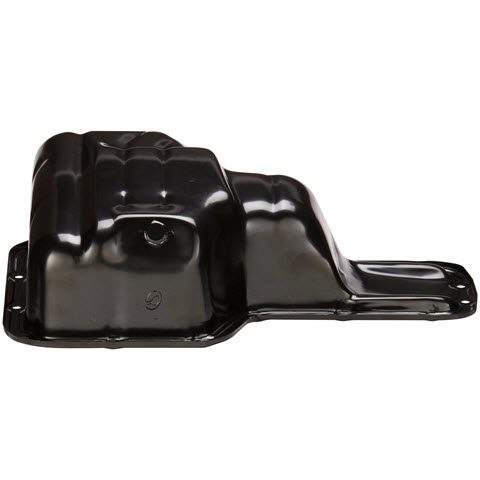

OIL PAN

Specifications
Baffled: Yes
Construction: Steel
Crank Shaft Wiper Included: No
Dipstick Port: No
Drain Plug Included: Yes
Drain Thread Diameter (mm): M12 x 1.25
Engine Manufacturer: General Motors
Engine Oil Cooler Return Fitting: No
Finish: Black Powder Coating
Gasket Or Seal Included: No
Height: 5.2
Installation Hardware Included: No
Kick Out Type Pan: No
Length (in): 17
Material: Cold Rolled Steel (EDDQ)
Maximum Depth (in): 5.1
Maximum Width (in): 11.25
Mount Hole Quantity: 16
Oil Level Sensor Port: No
PickUp Included: No
Sump Location: Front
Sump Type: Wet
Windage Tray Included: No
USA Warranty: LIMITED LIFETIME REPLACEMENT

Features & Benefits
  • Unit is designed to OE fit, form and function requirements accomplished by leveraging our OE expertise
  • Durable powder coating applied to exterior of oil pan for a long lasting rust free unit
  • Washed and then sealed with an anti-corrosive spray on the interior for a rust free unit at installation
  • Fit tested on the very same vehicle application for which it was developed verifying first-hand that the design fits properly and can be easily installed
  • Engineered to stringent tolerances based on our Canadian engineers' in-depth knowledge of the OE part it's designed to replace
  • Road tested to ensure real world performance and to verify that each design meets our high standards for quality
  • Coating salt spray tested for over 200 hours to insure durability
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Chevrolet - Prizm (1998-2002)
  • Pontiac - Vibe (2007-2008), L4 1.8 (2003-2010)
  • Toyota - Celica L4 1.8 (2000-2005); Corolla (1998-2008), L4 1.8 (2005-2006); Matrix (2007-2008), L4 1.8 (2003-2006); MR2 Spyder (2000-2005)
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
