Part Information

HHC - HYDRAULIC HOSE&COUPLINGS

All images...

 MFG Code: HHC
Part Number: 85717

Description

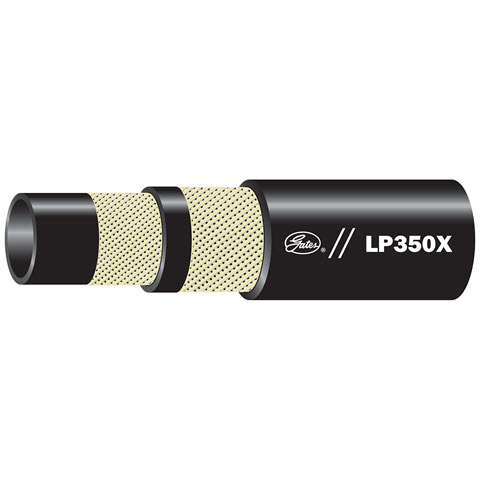

HYDRAULIC HOSE-BULK

Specifications
Cover Color: Black
Cover Material: Perforated Neoprene
Cover Type: Type A - Black Perforated Neoprene
Hose Inside Diameter (in): .25
Hose Outside Diameter (in): .58
Hose Pressure Description: Medium Pressure
Length (ft): 50
Maximum Working Pressure (psi): 350
Minimum Bend Radius (in): 3
Minimum Burst Pressure (psi): 1750
Reinforcement: Braided, High Tensile Synthetic Textile Cord
Tube Material: Nitrile - Type C
USA Warranty: REPLACE OR REFUND AT MGR DISCRETION

Features & Benefits
  • Contact Denver Product Application (303) 744- 5070 for inspection and assembly testing information. Meets UL Standard #21, CAN/CGA- 8.1- M86, NFPA 58, Section 8- 3, 5.
  • Temperature Range: - 40 Deg F to +180 Deg F (- 40 Deg C to +82 Deg C). For water emulsions see Temperature Limits Table.
  • Application Note: No LP350 hose assemblies 60" or longer allowed per UL requirement.
  • Recommended Couplings:
  • GLX Couplings
  • Power Crimp Couplings (-12)
