Part Information

HHC - HYDRAULIC HOSE&COUPLINGS

All images...

 MFG Code: HHC
Part Number: G31100-0202

Description
2AB-2MP

Specifications
USA Warranty: 1 YR REPLACEMENT IF DEFECTIVE

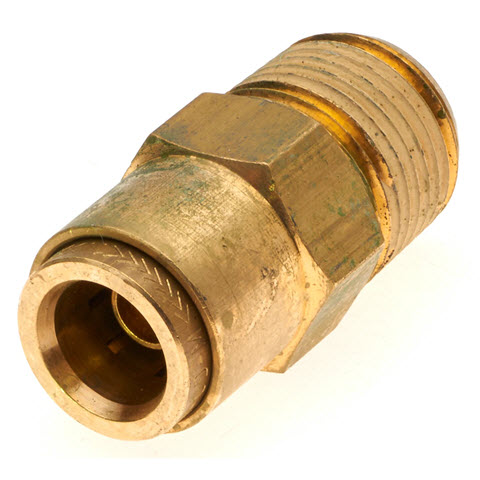

Coupling Description: SureLok Air Brake to Male Pipe
Length- L (in): .67
Material: 360 Brass
Maximum Working Pressure (psi): 150
Seal Material: Ethylene Propylene
Stem Hex- H1 (in): .4375
Thread Size - T1: 1/8-27
Tube Outside Diameter (in): .125

Features & Benefits
  • Meets DOT FMVSS 571.106, SAE J1131, DIN 74324 and German TUV requirements.
  • For use with SAE J844 or DIN 74324 nylon tubing.
  • Body: Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring.
  • Tube Support: Prevents tube collapse during severe loading conditions.
  • Collet: Collet teeth grip the tube, holding it firmly in the fitting.
  • O-Ring: Internal O-Ring provides a seal and necessary interference between tube and fitting body.
  • Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C).
