NGK - NGK SPARK PLUGS
All images...
|
|
MFG Code: NGK
Part Number: 2460
Description

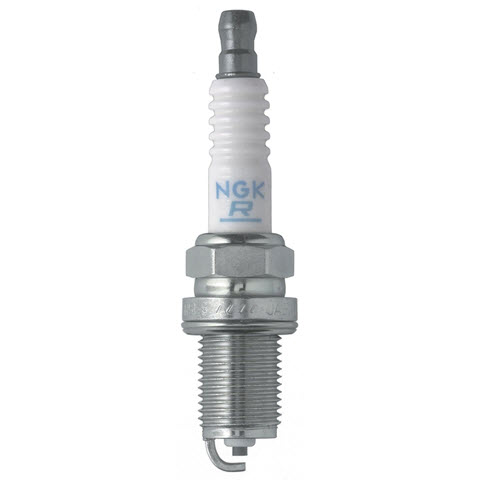

SPARK PLUG
Specifications
| Center Electrode Core Material: |
Copper |
| Center Electrode Tip Material: |
Nickel |
| Electrode Core Material: |
Copper |
| Electrode Tip Material: |
Nickel |
| Gap Size (in): |
0.036 |
| Ground Configuration: |
Standard |
| Ground Electrode Core Material: |
Nickel Core |
| Ground Electrode Quantity: |
1 |
| Ground Electrode Tip Design: |
Standard |
| Ground Strap Quantity: |
1 |
| Hex Size (in): |
5/8 |
| Insulator Type: |
ISO |
| Manufacturer Heat Range: |
5 |
| Reach (in): |
0.75 |
| Resistor: |
Yes |
| Seat Type: |
Gasket |
| Shorty Spark Plug: |
No |
| Spark Plug Thread Size (mm): |
14 |
| Thread Diameter (mm): |
14 |
| Tip Configuration: |
Standard |
| Type: |
Standard |
| Wrench Diameter (in): |
5/8 |
| USA Warranty: |
60 DAY REPLACEMENT IF DEFECTIVE |
|
|
|
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
|
MSDS Sheets
- No MSDS sheet available
|
|
|
Application Summary
- Bentley - Cars (1984-2009)
- Chevrolet - Beretta L4 2.3 (1992-1994)
- Dodge - B-Series Vans (1990-1996), V6 3.9 (1990-1996), V8 5.2 (1990-1996), V8 5.9 (1990-1997); D-Series Pickups V6 3.9 (1990-1993), V8 5.2 (1990-1993), V8 5.9 (1990-1993); Dakota V6 3.9 (1990-1996), V8 5.2 (1990-1996); Ram Trucks V6 3.9 (1994-1996), V8 5.2 (1994-1996), V8 5.9 (1994-1997); Ramcharger (1990-1993); W-Series V6 3.9 (1990-1993), V8 5.2 (1990-1993), V8 5.9 (1990-1993)
- Geo - Prizm (1993-1997)
- Hyundai - Sonata L4 2.4 (2006)
- Jaguar - Vanden Plas (1993-1997); XJR (1997); XJS (1993), L6 4.0 (1994); XJ6 (1993-1994)
- Jeep - Cherokee L6 4.0 (1987-1990); Comanche L6 4.0 (1987-1990); Grand Cherokee V8 5.2 (1993-1996); Grand Wagoneer (1993); Wagoneer (1988-1990), L6 4.0 (1987)
- Kia - Magentis L4 2.4 (2007-2008); Optima L4 2.4 (2007-2008); Sportage L4 2.0 (1995)
- Lexus - LX450 (1996-1997)
- Mazda - Miata L4 1.8 (2004-2005)
- Mercedes-Benz - CLK320 (1998-2002); CLK430 (1999-2002); CLK55 AMG (2001-2002); CL500 (1998-2002); CL55 AMG (2001-2002); CL600 (1998-2001); C220 (1994-1996); C230 (1997-1998); C240 (2001-2002); C280 (1994-2000); C320 (2001-2002); C36 AMG (1995-1997); C43 AMG (1998-2000); E320 (1994-2002); E420 (1994-1997); E430 (1998-2002); E500 (1994); E55 AMG (1999-2002); G500 (2002); ML320 (1998-2002); ML430 (1999-2001); ML500 (2002); ML55 AMG (2000-2002); SLK320 (2001-2002); SL320 (1994-1997); SL500 (1994-2002); SL600 (1994-2002); S320 (1994-1999); S420 (1994-1999); S430 (2000-2002); S500 (1994-1999); S55 AMG (2001-2002); S600 (1994-2001); 300CE (1990-1993); 300E L6 2.8 (1993), L6 3.2 (1993); 300SE (1992-1993); 300SL (1990-1993); 300TE L6 3.2 (1993); 400E (1992-1993); 400SE (1992); 400SEL (1993); 500E (1992-1993); 500SEC (1993); 500SEL (1992-1993); 500SL (1990-1993); 600SEC (1993); 600SEL (1992-1993); 600SL (1993)
- Mercury - Villager (1993-1998)
- Nissan - Quest (1993-1998)
- Oldsmobile - Achieva L4 2.3 (1992-1994)
- Peugeot - Cars (1989-1991)
- Pontiac - Grand Am L4 2.3 (1993-1994)
- Rolls-Royce - Cars (1995-2002)
- Scion - xA (2004-2006); xB (2004-2006)
- Toyota - Celica L4 1.8 (1994-1997); Corolla (1993-1997); Echo (2001-2005); Land Cruiser (1993-1997); Pickup V6 3.0 (1988-1995); Tacoma L4 2.4 (1995-1998), L4 2.7 (1995-1998); T100 (1993), L4 2.7 (1994-1998), V6 3.0 (1994); 4Runner L4 2.7 (1996-2000), V6 3.0 (1989-1995)
- Volkswagen - Cabrio (1995-2001); Golf L4 2.0 (1994-1998); Jetta L4 2.0 (1993-1999); Passat L4 2.0 (1995-1996)
|
Product Bulletins
- No bulletins available
|
|
|
Interchange Numbers
- No interchange numbers available
|
Specification Documents
- No specifications available
|
|
