Part Information

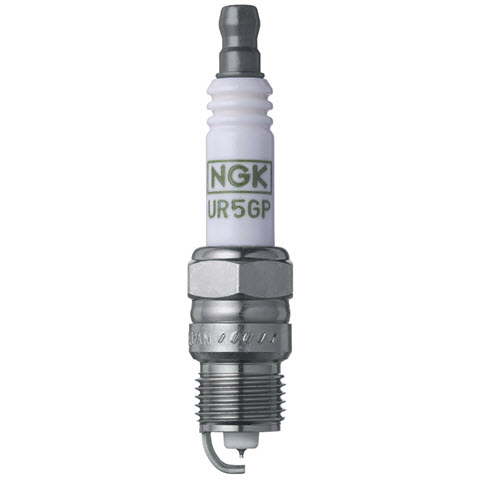

NGK - NGK SPARK PLUGS

All images...

MFG Code: NGK
Part Number: 2869

Description
SPARK PLUG-G POWER

Specifications
Center Electrode Core Material: Copper
Center Electrode Tip Material: Platinum
Electrode Core Material: Copper
Electrode Tip Material: Platinum
Gap Size (in): 0.04
Ground Configuration: Standard
Ground Electrode Core Material: Nickel Core
Ground Electrode Quantity: 1
Ground Electrode Tip Design: Trapezoid
Ground Strap Quantity: 1
Hex Size (in): 5/8
Insulator Type: ISO
Manufacturer Heat Range: 4
Reach (in): 0.46
Resistor: Yes
Seat Type: Tapered
Shorty Spark Plug: No
Spark Plug Thread Size (mm): 14
Thread Diameter (mm): 14
Tip Configuration: Trapezoid
Type: G-Power
Wrench Diameter (in): 5/8
USA Warranty: 60 DAY REPLACEMENT IF DEFECTIVE

Features & Benefits
  • SINGLE PLATINUM TIP: Fine wire 0.6 millimeter platinum tip center electrode ensures improved durability and a consistently stable spark
  • PLATINUM ALLOY: G-Power platinum provides exceptional value with increased performance and longer service intervals than factory nickel plugs
  • TRAPEZOIDAL CUT GROUND ELECTRODE: Reduces quenching design produces improved ignitability and performance
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
  • RECOMMENDED USAGE: Lower cost alternative to double precious metal spark plugs or as an upgrade to OE nickel alloy spark plugs
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Buick - Apollo V8 5.7 (1973-1974); Centurion (1971-1973); Century (1973-1974), V6 3.8 (1980), V8 4.4 (1981), V8 5.0 (1977-1981), V8 5.7 (1977-1979); Commercial Chassis (1991); Electra (1967-1974); Estate Wagon (1970-1973), V8 7.5 (1974); Gran Sport V8 6.6 (1967); GS (1970-1972); GS 350 (1968-1969); GS 400 (1968-1969); GS 455 (1970-1972); LeSabre (1968-1974), V6 3.8 (1979-1980), V8 4.4 (1982), V8 5.0 (1978); Regal (1973-1974), V6 3.8 (1979-1987), V8 4.4 (1981-1982), V8 5.0 (1977-1987), V8 5.7 (1977); Riviera (1967-1974), V6 3.8 (1979-1985); Roadmaster (1991); Skylark (1972), L6 4.1 (1970-1971), V8 5.0 (1977-1979), V8 5.7 (1968-1979), V8 6.6 (1967-1968), V8 7.5 (1970); Special V8 5.7 (1968-1969); Sportwagon (1968-1972), V8 5.7 (1969); Wildcat (1967-1970)
  • Cadillac - Brougham V8 5.0 (1991-1992); Commercial Chassis V8 5.7 (1993); Fleetwood (1993)
  • Checker - Cars (1970-1978)
  • Chevrolet - Cars (1970-1993), LD Trucks (1970-1987), Med/HD Trucks (1990), Vans (1970-1984)
  • Chrysler - Cordoba L6 3.7 (1980-1983); Fifth Avenue L6 3.7 (1983); LeBaron L6 3.7 (1978-1981); New Yorker L6 3.7 (1982); Newport L6 3.7 (1979-1981); Town & Country L6 3.7 (1978-1981)
  • Dodge - Aspen L6 3.7 (1976-1980); B-Series Vans L6 3.7 (1974-1987); Charger L6 3.7 (1976); Coronet L6 3.7 (1975-1976); CB300 L6 3.7 (1975-1979); D-Series Pickups L6 3.7 (1975-1987); Dart L6 3.7 (1975-1976); Diplomat L6 3.7 (1978-1983); Mirada L6 3.7 (1980-1983); Monaco L6 3.7 (1977-1978); Ramcharger L6 3.7 (1975-1980); St. Regis L6 3.7 (1979-1981); W-Series L6 3.7 (1975-1987), V8 5.2 (1981-1982)
  • Ford - Cars (1969-1991), LD Trucks (1969-1996), Med/HD Trucks (1988-1997), Vans (1975-1996)
  • GMC - C-Series Pickups L6 4.1 (1979-1980), V8 5.0 (1986), V8 5.7 (1979-1984), V8 6.6 (1979), V8 7.4 (1979-1980); C/K Series Pickups L6 4.1 (1971-1984), L6 4.8 (1985), V8 5.0 (1971-1986), V8 5.7 (1971-1984), V8 6.6 (1971-1980), V8 7.4 (1976-1980); C/K Series Suburbans (1981), L6 4.1 (1971-1980), V8 5.0 (1971-1986), V8 5.7 (1971-1984), V8 6.6 (1971-1980), V8 7.4 (1976-1980); Caballero V6 3.3 (1978-1979), V6 3.8 (1980-1984), V6 4.3 (1985-1987), V8 4.4 (1979-1982), V8 5.0 (1978-1987), V8 5.7 (1978-1979); G-Series Vans (1980-1981), L6 4.1 (1971-1984), V8 5.0 (1971-1983), V8 5.7 (1971-1984), V8 6.6 (1976-1980), V8 7.4 (1976); Jimmy L6 4.1 (1971-1982), V8 5.0 (1971-1986), V8 5.7 (1971-1983), V8 6.6 (1976-1979); P-Series Vans L6 4.1 (1971), V8 5.7 (1971-1984), V8 7.4 (1970-1980); Sprint L6 4.1 (1971-1977), V8 5.0 (1971-1977), V8 5.7 (1971-1977), V8 6.6 (1971-1976)
  • Jeep - J-100 V8 5.7 (1969-1971); J-2500 V8 5.7 (1969-1971); J-2600 V8 5.7 (1969-1970); J-2700 V8 5.7 (1969-1970); J-3500 V8 5.7 (1969-1970); J-3600 V8 5.7 (1969-1970); J-3700 V8 5.7 (1969-1970); J-3800 V8 5.7 (1969-1970); Wagoneer V8 5.7 (1971)
  • Lincoln - Continental (1973-1976); Mark IV (1973-1976)
  • Mercury - Capri V8 5.0 (1984-1985); Colony Park V8 5.8 (1971-1974), V8 6.6 (1971-1974), V8 7.0 (1970-1973), V8 7.5 (1973-1974); Comet V8 5.0 (1971-1976), V8 5.8 (1969); Cougar (1975-1976), V8 5.0 (1969-1970), V8 5.8 (1970-1978), V8 6.6 (1973-1974), V8 7.0 (1970-1971), V8 7.5 (1973-1974); Cyclone V8 5.8 (1969-1971), V8 7.0 (1970); Grand Marquis (1975-1976), V8 5.8 (1978-1989); Marquis (1975-1976), V8 5.8 (1970-1978), V8 6.6 (1971-1974), V8 7.0 (1973), V8 7.5 (1973-1974); Monarch V8 5.0 (1975-1976), V8 5.8 (1975-1977); Montego (1975-1976), V8 5.8 (1969-1974), V8 6.6 (1972-1974), V8 7.0 (1971-1973), V8 7.5 (1973-1974); Monterey V8 5.8 (1970-1974), V8 6.6 (1971-1974), V8 7.5 (1972-1974)
  • Oldsmobile - Custom Cruiser (1991), V8 5.0 (1992), V8 5.7 (1977); Cutlass (1985-1987), L6 4.1 (1970-1976), V8 4.4 (1981), V8 5.0 (1978-1980), V8 5.7 (1978-1979); Cutlass Calais V8 4.4 (1982), V8 5.0 (1978-1980); Cutlass Cruiser V8 4.4 (1982), V8 5.0 (1980-1982); Cutlass Salon V8 5.0 (1978-1980); Cutlass Supreme L6 4.1 (1976), V8 4.4 (1982), V8 5.0 (1978-1980), V8 5.7 (1978); Delta 88 V8 4.4 (1981-1982), V8 5.7 (1977); F85 L6 4.1 (1970-1971); Omega L6 4.1 (1973-1976), V8 5.0 (1977-1979), V8 5.7 (1977-1979); Starfire V8 5.0 (1977-1979)
  • Plymouth - Caravelle L6 3.7 (1978-1983); Duster L6 3.7 (1974-1976); Fury L6 3.7 (1975-1978); Gran Fury L6 3.7 (1980-1983); PB Series (1982), L6 3.7 (1975-1983); PB100 Van L6 3.7 (1974); PB200 Van L6 3.7 (1974); Scamp L6 3.7 (1975-1976); Trailduster L6 3.7 (1975-1980); Valiant L6 3.7 (1975-1976); Volare L6 3.7 (1976-1980)
  • Pontiac - Bonneville (1973), V6 4.3 (1986), V8 5.0 (1983-1985), V8 6.6 (1974), V8 7.5 (1972-1974); Catalina (1972-1974), L6 4.1 (1977-1979), V6 3.8 (1980), V8 4.4 (1980-1981); Firebird (1987), L6 4.1 (1970-1976), V8 4.4 (1981), V8 5.0 (1977-1992), V8 5.7 (1972-1992), V8 6.6 (1972-1974), V8 7.5 (1972-1974); Grand Am (1973), V8 5.0 (1978-1980), V8 6.6 (1974), V8 7.5 (1974); Grand LeMans L6 4.1 (1976-1977), V6 3.3 (1978-1979), V6 3.8 (1980-1981), V8 4.4 (1979-1982), V8 5.0 (1977-1980), V8 5.7 (1976-1979); Grand Prix (1972-1974), V6 4.3 (1986-1987), V8 4.4 (1981-1982), V8 5.0 (1978-1987); Grand Safari V8 6.6 (1973-1974), V8 7.5 (1972-1974); Grandville (1973), V8 7.5 (1972-1974); GTO V8 6.6 (1972-1973), V8 7.5 (1972-1973); Laurentian L6 4.1 (1977-1979), V6 3.8 (1980), V8 4.4 (1980-1981), V8 5.7 (1976-1979); LeMans L6 4.1 (1970-1977), V6 3.3 (1978-1979), V6 3.8 (1980-1981), V8 4.4 (1979-1981), V8 5.0 (1976-1981), V8 5.7 (1972-1979), V8 6.6 (1972-1974), V8 7.5 (1972-1974); Parisienne L6 4.1 (1977-1979), V6 3.8 (1980), V6 4.3 (1985-1986), V8 4.4 (1980-1982), V8 5.0 (1980-1985), V8 5.7 (1976-1979); Phoenix V8 5.0 (1978-1979), V8 5.7 (1977-1979); Sunbird V8 5.0 (1978-1979); Tempest L6 4.1 (1970); Ventura L6 4.1 (1971-1976), V8 5.0 (1971-1977), V8 5.7 (1972-1977)
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
