Part Information

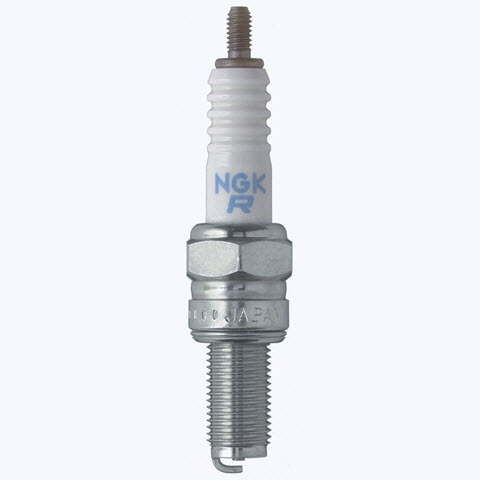

NGK - NGK SPARK PLUGS

All images...

MFG Code: NGK
Part Number: 3236

Description
RACING SPARK PLUG

Specifications
Center Electrode Core Material: Copper
Center Electrode Tip Material: Gold-Palladium
Electrode Core Material: Copper
Electrode Tip Material: Gold-Palladium
Gap Size (in): 0.026
Ground Configuration: Standard
Ground Electrode Core Material: Nickel Core
Ground Electrode Quantity: 1
Ground Electrode Tip Design: Taper Cut
Ground Strap Quantity: 1
Hex Size (in): 13/16
Insulator Type: ISO
Manufacturer Heat Range: 8
Reach (in): 0.75
Resistor: No
Seat Type: SUS Gasket
Shorty Spark Plug: No
Spark Plug Thread Size (mm): 14
Thread Diameter (mm): 14
Tip Configuration: Taper Cut
Type: Racing
Wrench Diameter (in): 13/16
USA Warranty: 60 DAY REPLACEMENT IF DEFECTIVE

Features & Benefits
  • Center Electrode Design -special center electrode configurations and designs to ensure durability and ignitibility; some use precious metals.
  • Many different ground electrode configurations to ensure durability.
  • Racing plugs are available in colder heat ranges for high performance applications.
  • Proven race results
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Suzuki - RM250 (1992-1995)
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
