NGK - NGK SPARK PLUGS
|
|
MFG Code: NGK
Part Number: 7634
Description

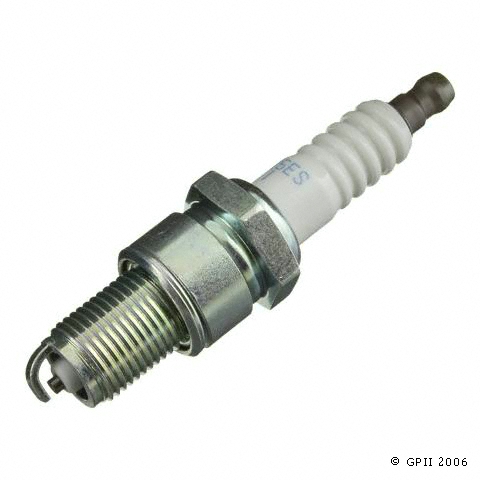

SPARK PLUG
Specifications
Center Electrode Core Material: |
Copper |
Center Electrode Tip Material: |
Nickel |
Electrode Core Material: |
Copper |
Electrode Tip Material: |
Nickel |
Gap Size (in): |
0.044 |
Ground Configuration: |
Standard |
Ground Electrode Core Material: |
Nickel Core |
Ground Electrode Quantity: |
1 |
Ground Electrode Tip Design: |
Standard |
Ground Strap Quantity: |
1 |
Hex Size (in): |
13/16 |
Insulator Type: |
ISO |
Manufacturer Heat Range: |
5 |
Reach (in): |
0.75 |
Resistor: |
Yes |
Seat Type: |
Gasket |
Shorty Spark Plug: |
No |
Spark Plug Approximate Resistor Value (Ohm): |
5k |
Spark Plug Thread Size (mm): |
14 |
Thread Diameter (mm): |
14 |
Tip Configuration: |
Standard |
Type: |
Standard |
Wrench Diameter (in): |
13/16 |
USA Warranty: |
60 DAY REPLACEMENT IF DEFECTIVE |
|
|
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
|
MSDS Sheets
- No MSDS sheet available
|
|
Application Summary
- American IronHorse - Street Motorcycle (2000-2003)
- Big Dog - Street Motorcycle (2001-2004)
- Chevrolet - Nova (1985-1988); Sprint L3 1.0 (1989-1992)
- Chrysler - Daytona V6 3.0 (1990-1993); Dynasty V6 3.0 (1988-1990); E Class L4 2.6 (1983-1984); Executive Limousine (1985); Executive Sedan (1983-1984); LeBaron (1995), L4 2.6 (1982-1985), V6 3.0 (1990-1994); Minivans V6 3.0 (2000); New Yorker (1989), L4 2.6 (1983-1985), V6 3.0 (1988); Town & Country L4 2.6 (1982-1985); TC Maserati (1991), V6 3.0 (1990)
- Daihatsu - Charade (1988), L3 1.0 (1989-1992)
- Dodge - Aries L4 2.6 (1981-1985); Challenger (1980-1983), L4 2.6 (1978-1979); Colt (1995), L4 1.5 (1991-1994), L4 2.6 (1978-1980); Daytona V6 3.0 (1990-1993); Dynasty V6 3.0 (1988-1993); D50 L4 2.6 (1979-1982); Mini Ram L4 2.6 (1987-1988), V6 3.0 (1987-1988); Minivans L4 2.6 (1984-1987), V6 3.0 (1987-2000); Power Ram 50 L4 2.6 (1983); Raider V6 3.0 (1989); Ram 50 L4 2.6 (1983), V6 3.0 (1990-1991); Shadow V6 3.0 (1992-1994); Spirit V6 3.0 (1989-1995); Stealth V6 3.0 (1991-1996); 400 L4 2.6 (1982-1983); 600 L4 2.6 (1983-1985)
- Eagle - Summit (1991), L4 1.5 (1989-1996), L4 2.4 (1992); Vista (1988-1992), L4 1.5 (1989-1991), L4 2.0 (1989-1991)
- Harley-Davidson - Street Motorcycle (1975-2000)
- Honda - Accord (1986-1989); Passport L4 2.6 (1994-1996); Prelude L4 2.0 (1985-1987)
- Hyundai - Santa Fe L4 2.4 (2001-2006); Sonata L4 2.4 (1999-2005), V6 3.0 (1990-1998)
- Isuzu - Amigo (1994), L4 2.3 (1990-1993), L4 2.6 (1989-1993); Pickup (1995), L4 2.3 (1992-1994), L4 2.6 (1992-1994); Rodeo L4 2.6 (1991-1997); Trooper (1988), L4 2.6 (1989-1991)
- Kia - Magentis L4 2.4 (2001-2006); Optima L4 2.4 (2001-2006); Sephia (1994), L4 1.6 (1995)
- Mazda - B-Series (1987-1993); 323 (1986-1992), L4 1.6 (1988-1995)
- Mitsubishi - Galant (1985-1988); Mighty Max L4 2.6 (1983-1985), V6 3.0 (1990-1994); Mirage L4 1.5 (1991-1999); Montero (1983-1993), V6 3.0 (1989-1994); Sigma (1989-1990); 3000GT V6 3.0 (1997-1999)
- Nissan - B210 (1977-1978); F10 (1977-1978); Micra (1984-1991); Pulsar (1983); Pulsar NX (1985-1986), L4 1.6 (1983-1988); Sentra (1982), L4 1.5 (1983), L4 1.6 (1983-1986); Stanza (1982-1983); 210 (1982), L4 1.2 (1979-1981), L4 1.4 (1979-1981), L4 1.5 (1979-1981); 280Z (1977-1978); 280ZX (1979-1980); 310 (1979-1982); 810 (1977-1979)
- Plymouth - Acclaim V6 3.0 (1989-1995); Arrow L4 2.6 (1979-1980); Arrow Pickup L4 2.6 (1979-1982); Caravelle L4 2.6 (1983-1985); Colt L4 1.5 (1991), L4 2.4 (1992), L4 2.6 (1978-1980); Grand Voyager (1989), V6 3.0 (1987-2000); Reliant L4 2.6 (1981-1985); Sapporo (1980-1983), L4 2.6 (1978-1979); Sundance V6 3.0 (1992-1994); Voyager L4 2.6 (1984-1987), V6 3.0 (1987-2000)
- Toyota - Camry (1983), L4 2.0 (1984-1986); Celica L4 2.0 (1986), L6 2.8 (1982-1985); Corolla (1980-1987), L4 1.6 (1984-1988); Cressida (1982-1988); Land Cruiser (1975-1992); Starlet (1983-1984); Tercel (1981-1994); Van (1984-1989)
|
Product Bulletins
- No bulletins available
|
|
Interchange Numbers
- No interchange numbers available
|
Specification Documents
- No specifications available
|
|
