Part Information

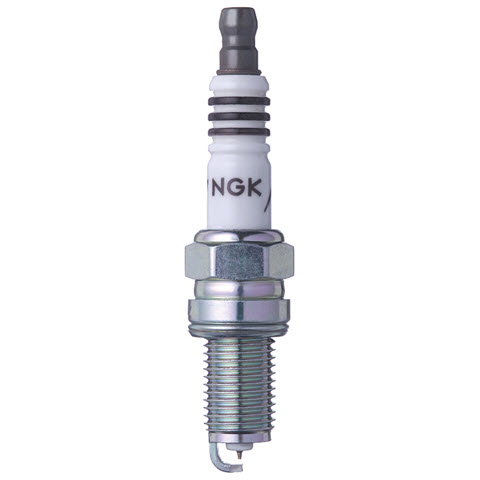

NGK - NGK SPARK PLUGS

All images...

 MFG Code: NGK
Part Number: 8196

Description
NGK IRIDIUM IX PLUG

Specifications
Center Electrode Core Material: Copper Core
Center Electrode Tip Material: Iridium
Electrode Core Material: Copper
Electrode Tip Material: Iridium
Gap Size (in): 0.032
Ground Configuration: Standard
Ground Electrode Core Material: Nickel Core
Ground Electrode Quantity: 1
Ground Electrode Tip Design: Taper Cut
Hex Size (in): 5/8
Insulator Type: ISO
Manufacturer Heat Range: 6
Reach (in): 0.75
Resistor: Yes
Seat Type: Gasket
Shorty Spark Plug: No
Spark Plug Approximate Resistor Value (Ohm): 5k
Spark Plug Thread Size (mm): 12
Thread Diameter (mm): 12
Tip Configuration: Taper Cut
Wrench Diameter (in): 5/8
USA Warranty: 60 DAY REPLACEMENT IF DEFECTIVE

Features & Benefits
  • SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
  • IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
  • TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
MSDS Sheets
- No MSDS sheet available
Application Summary
  • BMW - M5 (1991-1993)
  • Honda - VTX1300C (2004-2009); VTX1300R (2005-2009); VTX1300S (2003-2007); VTX1300T (2008-2009); VT13CX Fury (2010-2020); VT13CXA Fury ABS (2012-2019); VT1300CR Stateline (2010-2016); VT1300CRA Stateline ABS (2010-2016); VT1300CS Sabre (2010-2014); VT1300CSA Sabre ABS (2010-2014); VT1300CT Interstate (2010-2015); VT1300CTA Interstate ABS (2011-2015)
  • Victory - Street Motorcycle (1998-2017)
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
