Part Information

NGK - NGK

All images...

 MFG Code: NGK
Part Number: 94124

Description

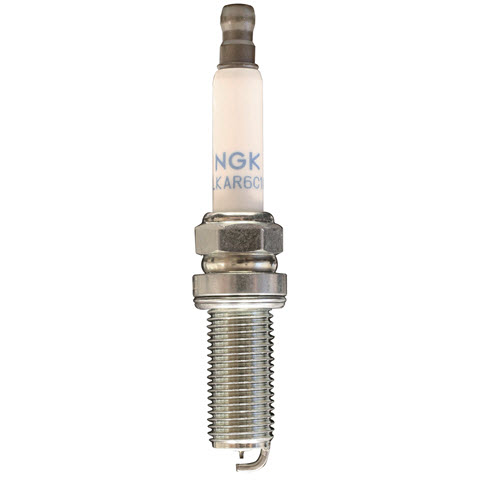

NGK LASER IRID. PLUG

Specifications
Center Electrode Core Material: Copper Core
Center Electrode Tip Material: Iridium
Ground Configuration: Standard
Ground Electrode Core Material: Nickel Core
Ground Electrode Quantity: 1
Ground Electrode Tip Design: Standard
Hex Size (mm): 14
Insulator Height: 50.00
Manufacturer Heat Range: 7
Pre-Gap Size (in): .044
Reach (in): 26.5
Resistance (Ohms): 5000
Seat Type: Flat
Thread Diameter (mm): 12.00
USA Warranty: 60 DAY REPLACEMENT IF DEFECTIVE

Features & Benefits
  • ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
  • IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
  • PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • RECOMMENDED USAGE: Best for vehicles with OE fine wire iridium alloy plugs
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Mazda - CX-3 (2016-2022); CX-30 (2020), L4 2.0 (2021-2023), L4 2.5 (2021-2024); CX-5 (2013-2016), L4 2.5 (2017-2023); CX-50 L4 2.5 (2023-2024); CX-90 L4 2.5 (2024); MX-5 Miata (2016-2023); 3 (2014-2019), L4 2.0 (2012-2023), L4 2.5 (2020-2024); 3 Sport (2014-2020), L4 2.0 (2011-2023), L4 2.5 (2021-2024); 6 (2014-2017), L4 2.5 (2018-2021)
  • Scion - iA (2016)
  • Toyota - Yaris (2020), L4 1.5 (2016-2019); Yaris iA (2017-2018)
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
