Part Information

RBR - CARQUEST BELTS&HOSE

MFG Code: RBR
Part Number: 24256

Description

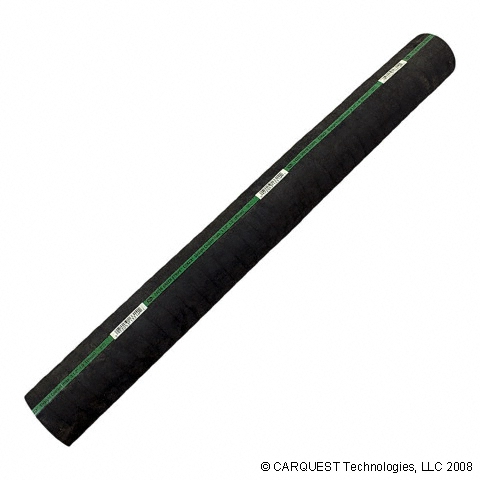

RAD HOSE

Specifications
Centerline Length (ft): 3
Centerline Length (in): 36
Inside Diameter 1 (in): 3.5
Centerline Length (m): 0.91
Centerline Length (mm): 914
Inside Diameter 1 (mm): 89
Working Pressure (PSI): 18
Construction: 2-Ply
USA Warranty: 1 YR REPLACEMENT IF DEFECTIVE

Features & Benefits
  • Resists "cold water leaks" due to advanced EPDM tube and cover that stay soft and pliable, even under adverse operating conditions.
  • Exceeds SAE 20R1 Type EC (Class D-1 Tube, and cover, Standard Wall).
  • Cover marked in one-inch increments to facilitate approximate cut lengths, allows "custom-fit" installations.
  • Engineered to resist electrochemical degradation - the leading cause of hose failure.
  • Temperature Rating: - 40 Deg. F to +257 Deg. F (- 40 Deg. C to +125 Deg. C).
  • Note: For a maintenance free connection, use PowerGrip(R) SB Clamps.
  • CAUTION: Do not use for fuel or oil transfer applications.
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Freightliner - Med/HD Trucks (1981-1997)
  • Kenworth - Med/HD Trucks (1981-1982)
  • Mack - Med/HD Trucks (1992-1993)
  • Peterbilt - Med/HD Trucks (1981)
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
