CARQUEST

CARQUEST Auto Parts
Part Information

RCH - RCH - CARQUEST RED CHASSIS

All images...

 MFG Code: RCH
Part Number: DW-DS1161

Description

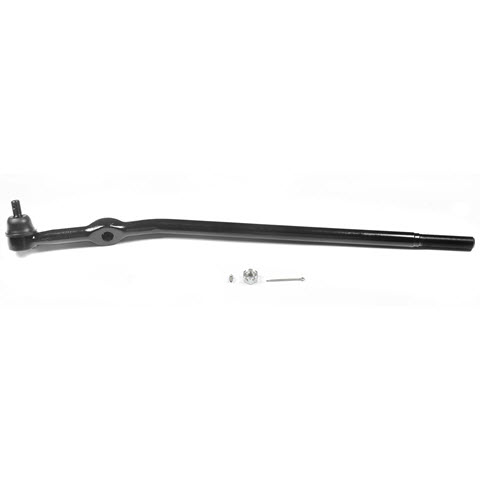

TIE RODS / ENDS

Specifications
Tie Rod Material: Housing: 45# Steel, Stud: 40Cr
Type: Bent
Weight (lbs): 7.04
Adjustable: No
Bearing Material: Metal Powder
Color: Black
Dust Boot Included: Yes
Dust Boot Material: Neoprene
End 1 Gender: Male
End 1 Thread Diameter (mm): 22
End 1 Thread Direction: Counterclockwise
End 1 Thread Pitch (mm): 1.5
End 1 Threads Per Inch: 17
End 2 Gender: Male
End 2 Thread Diameter (mm): 14.3
End 2 Thread Direction: Clockwise
End 2 Thread Pitch (mm): 1.4
End 2 Threads Per Inch: 18
Finish: Ball Stud: Blackening, Housing: E-coating
Greasable: Yes
Grease Fitting Included: Yes
Housing Material: 45# Steel
Length Stud Center to End (mm): 710
Mounting Hardware Included: Yes
Pre-Greased: No
Stud Type: Threaded
USA Warranty: LIMITED LIFETIME REPLACEMENT

Features & Benefits
  • Meets or exceeds OE performance specifications
  • Performance tested to ensure durability
  • Forged micro-alloy steel construction for strength and durability
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Ford - Bronco II (1989-1990) - Front Right Inner; Explorer (1991-1994) - Front Right Inner; Ranger (1989-1997) - Front Right Inner
  • Mazda - B-Series (1994-1997) - Front, (1997) - Front Right Inner; Navajo (1991-1994) - Front Right Inner
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
