Part Information

RCH - RCH - CARQUEST RED CHASSIS

All images...

 MFG Code: RCH
Part Number: DW-ES3488

Description

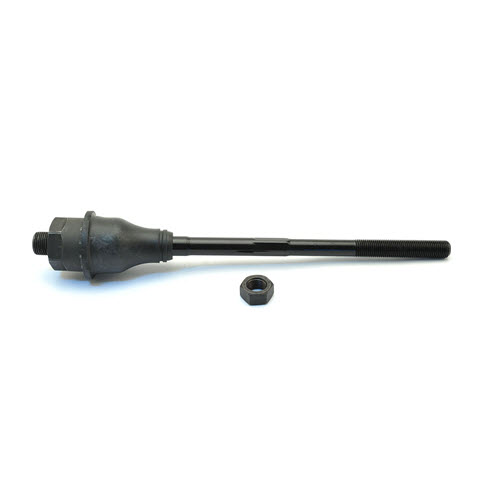

TIE ROD END

Specifications
Adjustable: No
Bearing Material: 40Cr
Color: Black
Dust Boot Included: Yes
Dust Boot Material: CR
End 1 Gender: Male
End 1 Thread Diameter (mm): 18
End 1 Thread Direction: Clockwise
End 1 Thread Pitch (mm): 1.5
End 2 Gender: Female
End 2 Thread Diameter (mm): 14
End 2 Thread Direction: Clockwise
End 2 Thread Pitch (mm): 1.5
Finish: Housing: Phosphating, Ball Pin: Black ED Coating
Greasable: No
Grease Fitting Included: No
Housing Material: 20# Steel
Length Stud Center to End (mm): 278
Mounting Hardware Included: No
Pre-Greased: Yes
Stud Type: Threaded
Tie Rod Material: Housing: 20#, Ball Pin: 40Cr
Type: Straight
Weight (lbs): 1.38
USA Warranty: LIMITED LIFETIME REPLACEMENT

Features & Benefits
  • Meets or exceeds OE performance specifications
  • Performance tested to ensure durability
  • Forged micro-alloy steel construction for strength and durability
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Cadillac - Escalade (2002-2006) - Front Inner; Escalade ESV (2003-2006) - Front Inner; Escalade EXT (2002-2006) - Front Inner
  • Chevrolet - Avalanche 1500 (2002-2006) - Front Inner; Avalanche 2500 (2002-2006) - Front Inner; Silverado Pickups (1999-2010) - Front Inner; Silverado 1500 Classic (2007) - Front Inner; Silverado 1500 HD Classic (2007) - Front Inner; Silverado 2500 HD Classic (2007) - Front Inner; Silverado 3500 Classic (2007) - Front Inner; Suburban 3500 HD (2016-2019) - Front Inner; Suburbans (2000-2013) - Front Inner; Tahoe (2000-2006) - Front Inner
  • GMC - Sierra Pickups (1999-2010) - Front Inner; Sierra 1500 Classic (2007) - Front Inner; Sierra 1500 HD Classic (2007) - Front Inner; Sierra 2500 HD Classic (2007) - Front Inner; Sierra 3500 Classic (2007) - Front Inner; Yukons (2000-2013) - Front Inner
  • Hummer - H2 (2003-2009) - Front Inner
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
