CARQUEST

CARQUEST Auto Parts
Part Information

RCH - RCH - CARQUEST RED CHASSIS

All images...

 MFG Code: RCH
Part Number: DW-K6541

Description

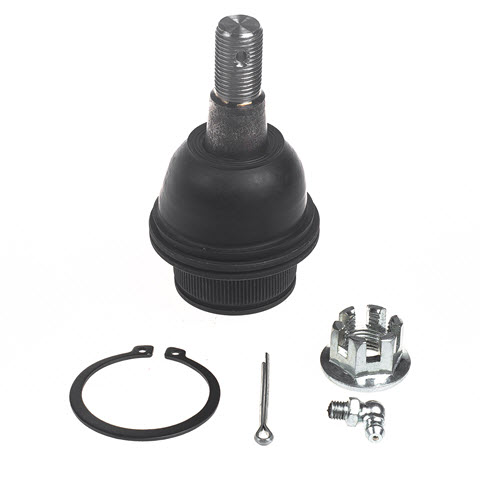

BALL JOINT

Specifications
Adjustable: No
Ball Joint Assembly: No
Bushings Included: No
Castle Nut Included: Yes
Cotter Pin Hole: Yes
Cotter Pin Included: Yes
Dust Boot Included: Yes
Dust Boot Material: Neoprene
Greasable: Yes
Grease Fitting Included: Yes
Height (mm): 104
Material: Housing: 45# Steel, Stud: 40Cr
Maximum Outside Diameter (mm): 60.5
Mount Plate Included: No
Mounting Bolts Included: No
Mounting Hardware Included: Yes
Nuts Included: Yes
Stud Taper Per Foot (in): 2
Stud Tapered End 1 Diameter (mm): 18.5
Stud Tapered End 2 Diameter (mm): 23.3
Stud Thread Diameter (mm): 16
Stud Thread Length (mm): 24
Stud Thread Pitch (mm): 1.5
Stud Threads Per Inch: 17
Stud Type: Threaded
Suspension Grade Type: Standard
Tapered Stud: Yes
Washers Included: No
USA Warranty: LIMITED LIFETIME REPLACEMENT

Features & Benefits
  • Meets or exceeds OE performance specifications
  • Premium Polychloroprene boot provides extended temperature range and better wear resistance
  • Test-proven stud material helps prevent premature stud failure
  • Provides premium gauge steel construction for strength and durability
  • Performance tested to ensure durability
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Cadillac - Brougham (1987-1992) - Front Lower; Escalade (2002-2016) - Front Lower; Escalade ESV (2003-2016) - Front Lower; Escalade EXT (2002-2013) - Front Lower
  • Chevrolet - Avalanche (2007-2013) - Front Lower, V8 5.3 (2012) - Front Lower; Avalanche 1500 (2002-2006) - Front Lower; Express Vans (2003-2014) - Front Lower; Silverado Pickups (1999-2016) - Front Lower; Silverado 1500 Classic (2007) - Front Lower; Suburbans (2000-2016) - Front Lower; Tahoe (2000-2016) - Front Lower
  • GMC - Savana Vans (2003-2014) - Front Lower; Sierra Pickups (1999-2016) - Front Lower; Sierra 1500 Classic (2007) - Front Lower; Yukon XL (2015-2016) - Front Lower; Yukons (2000-2016) - Front Lower
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
