CARQUEST - Part Information

Part Information

RCH - RCH - CARQUEST RED CHASSIS

MFG Code: RCH
Part Number: DW-K80141

Description

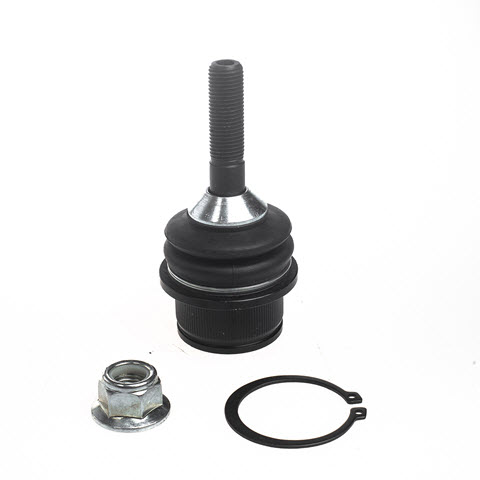

BALL JOINT

Specifications

Mounting Bolts Included:	No
Mounting Hardware Included:	Yes
Adjustable:	No
Nuts Included:	Yes
Ball Joint Assembly:	No
Bushings Included:	NO
Castle Nut Included:	No
Stud Thread Diameter (mm):	14
Stud Thread Length (mm):	38
Cotter Pin Hole:	No
Cotter Pin Included:	NO
Dust Boot Included:	Yes
Dust Boot Material:	Neoprene
Greasable:	No
Grease Fitting Included:	NO
Height (mm):	114
Length (mm):	57
Material:	Ball Stud: 40Cr Steel, Housing: 45# Steel
Maximum Outside Diameter (mm):	57
Mount Plate Included:	No
Stud Thread Pitch (mm):	1.5
Stud Threads Per Inch:	17
Stud Type:	Threaded
Suspension Grade Type:	Standard
Tapered Stud:	No
Washers Included:	No
USA Warranty:	LIMITED LIFETIME REPLACEMENT


Features & Benefits Meets or exceeds OE performance specifications Premium Polychloroprene boot provides extended temperature range and better wear resistance Test-proven stud material helps prevent premature stud failure Provides premium gauge steel construction for strength and durability Performance tested to ensure durability	MSDS Sheets - No MSDS sheet available

Application Summary Ford - Crown Victoria (2003-2011) - Front Lower Lincoln - Town Car (2003-2011) - Front Lower Mercury - Grand Marquis (2003-2011) - Front Lower; Marauder (2003-2004) - Front Lower	Product Bulletins - No bulletins available

Interchange Numbers - No interchange numbers available	Specification Documents - No specifications available
