Part Information

RCH - RCH - CARQUEST RED CHASSIS

All images...

 MFG Code: RCH
Part Number: DW-K80631

Description

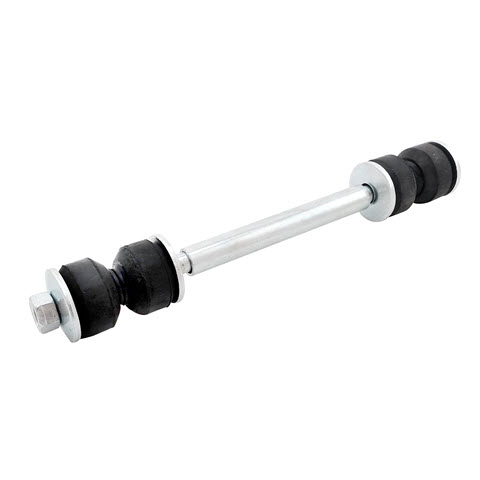

SWAY BAR LINK KIT

Specifications
Bolt Length (mm): 221
Bolt Thread Diameter (mm): 9.52
Bolt Thread Size: M9.5
Bolts Included: Yes
Bushing Color: Black
Bushing Inside Diameter (mm): 10
Bushing Material: Natural Rubber
Bushing Outside Diameter (mm): 30.5
Bushings Included: Yes
Dust Boot Included: No
Grade Type: Regular
Greasable: No
Grease Fitting Included: No
Locking Nuts Included: Yes
Pre-Greased: No
Sleeve Diameter (mm): 13
Sleeve Length (mm): 101
Wall Thickness (mm): 1.5
Washers Included: Yes
Weight (lbs): 0.82
USA Warranty: LIMITED LIFETIME REPLACEMENT

Features & Benefits
  • Meets or exceeds OE performance specifications
  • Premium polychloroprene boot with grease relief valve keeps contaminants out
  • Performance tested to ensure durability
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Cadillac - Escalade (1999-2006) - Front; Escalade ESV (2003-2006) - Front; Escalade EXT (2002-2006) - Front
  • Chevrolet - Avalanche 1500 (2002-2006) - Front; Avalanche 2500 (2002-2006) - Front; C/K Series Pickups (1988-2000) - Front; C/K Series Suburbans (1992-1999) - Front; Express Vans (2005-2011) - Front, V8 6.0 (2003-2004) - Front; Silverado Pickups (1999-2006) - Front; Silverado 1500 Classic (2007) - Front; Silverado 1500 HD Classic (2007) - Front; Silverado 3500 Classic (2007) - Front; Suburbans (2000-2006) - Front; Tahoe (1995-2006) - Front
  • Ford - Fairmont (1978-1981) - Front; Granada (1981-1982) - Front; LTD (1983-1986) - Front, V8 5.0 (1984-1985) - Front; Mustang (1979-1981) - Front; Thunderbird (1987-1988) - Front
  • GMC - C/K Series Pickups (1988-2000) - Front; C/K Series Suburbans (1992-1999) - Front; Safari (1990-2005) - Front; Savana Vans (2003-2011) - Front; Sierra Pickups (1999-2006) - Front; Sierra 1500 Classic (2007) - Front; Sierra 1500 HD Classic (2007) - Front; Sierra 3500 Classic (2007) - Front; Yukons (1995-2006) - Front
  • Hummer - H2 (2003-2009) - Front
  • Nissan - 620 (1978-1979) - Front
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
