CARQUEST - Part Information

Part Information

RCH - RCH - CARQUEST RED CHASSIS

MFG Code: RCH
Part Number: DW-K90309

Description

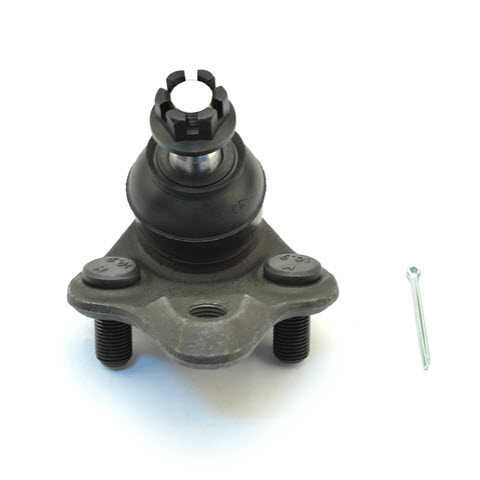

BALL JOINT

Specifications

Mounting Type:	Bolt-in
Nuts Included:	Yes
Stud Thread Diameter (mm):	14
Stud Thread Length (mm):	22
Stud Thread Pitch (mm):	1.5
Stud Type:	Threaded
Adjustable:	No
Adjustment Range:	42 degrees
Ball Joint Assembly:	Yes
Suspension Grade Type:	Standard
Bushings Included:	No
Castle Nut Included:	Yes
Cotter Pin Hole:	No
Tapered Stud:	Yes
Cotter Pin Included:	Yes
Dust Boot Included:	Yes
Washers Included:	No
Dust Boot Material:	Chloroprene Rubber
Greasable:	No
Grease Fitting Included:	No
Height (mm):	84.6
Material:	45# Steel
Maximum Outside Diameter (mm):	109
Mount Plate Included:	No
Mounting Bolt Head Diameter (mm):	18
Mounting Bolt Length (mm):	33
Mounting Bolt Shank Diameter (mm):	18
Mounting Bolt Thread Diameter (mm):	12
Mounting Bolt Thread Length (mm):	21
Mounting Bolt Thread Pitch (mm):	1.25
Mounting Bolts Included:	Yes
Mounting Hardware Included:	Yes
Mounting Hole Quantity:	3
USA Warranty:	LIMITED LIFETIME REPLACEMENT


Features & Benefits Meets or exceeds OE performance specifications Premium Polychloroprene boot provides extended temperature range and better wear resistance Test-proven stud material helps prevent premature stud failure Provides premium gauge steel construction for strength and durability Performance tested to ensure durability	MSDS Sheets - No MSDS sheet available

Application Summary Toyota - Celica (2000-2005) - Front Lower; Corolla (1996-2025) - Front Lower, L4 2.0 (2019) - Front Lower; Prius (2001-2022) - Front Lower; Prius AWD-e (2019-2022) - Front Lower; Prius Prime (2017-2022) - Front Lower; RAV4 (2001-2005) - Front Lower	Product Bulletins - No bulletins available

Interchange Numbers - No interchange numbers available	Specification Documents - No specifications available
