Part Information

RDR - CARQUEST RADIATORS

All images...

MFG Code: RDR
Part Number: 432298

Description

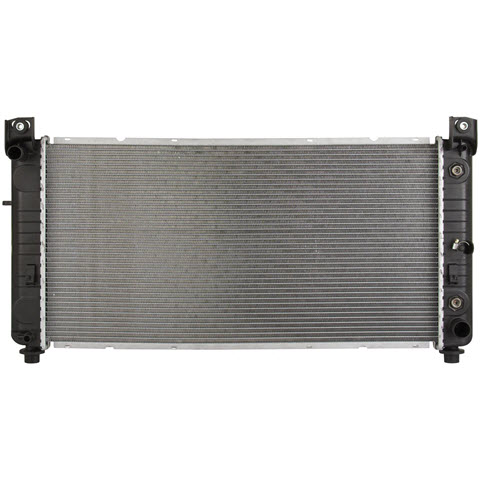

RADIATOR

Specifications
Core Thickness (in): 1.0236220472
Core Width (in): 34.015748031
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Inlet Diameter (in): 1.2992125984
Outlet Diameter (in): 1.5748031496
Tank Material: Plastic
Core Height (in): 17.244094488
Core Material: Aluminum
Core Row Quantity: 1
Transmission Oil Cooler Distance between Fittings (in): 11.496062992
Transmission Oil Cooler Fitting Diameter (in): 0.37
Transmission Oil Cooler Fitting Type: Quick Connect (Spring Lock)
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Type: Plate Oil Cooler
USA Warranty: LIMITED LIFETIME REPLACEMENT

Features & Benefits
  • OE-comparable mounting provisions ensure precise, drop-in fitment into your vehicle
  • OE-comparable aluminum tubes and cooling fins to ensure sufficient cooling surface area
  • Premium high strength aluminum tubes to for operational stability and efficiency
  • Tanks manufactured from Super Heat-resistant, high density polymer plastic for added protection against extreme engine temperatures
  • Severe hot and cold temperature testing to verify durability in summer and winter weather conditions
  • Accelerated high pressure and temperature flow testing to ensure reliability in operating conditions
  • Individual leak-tested Oil Coolers and Fittings during assembly process
  • Individual leak-testing for every assembled radiator as verification of complete sealing
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Cadillac - Escalade (2002-2014); Escalade ESV (2003-2014); Escalade EXT (2002-2013)
  • Chevrolet - Avalanche (2007-2013); Avalanche 1500 (2002-2006); Silverado Pickups (1999-2009), V6 4.3 (2010-2016), V8 4.8 (2010-2013), V8 5.3 (2010-2013), V8 6.0 (2001-2013), V8 6.2 (2010-2013); Silverado 1500 Classic (2007); Silverado 1500 HD Classic (2007); Silverado 2500 HD Classic V8 6.0 (2007); Suburbans (2000-2014), V8 6.0 (2001-2006); Tahoe (2001-2014), V8 4.8 (2000-2009), V8 5.3 (2000-2013), V8 6.2 (2008-2009)
  • GMC - Sierra Pickups (2001-2013), V6 4.3 (1999-2006), V8 4.8 (2005-2006), V8 5.3 (1999-2006), V8 6.0 (1999-2018); Sierra 1500 Classic (2007); Sierra 1500 HD Classic (2007); Yukons (2000-2014), V8 4.8 (2000-2009), V8 5.3 (2000-2013), V8 6.0 (2001-2009), V8 6.2 (2008-2013)
  • Hummer - H2 (2003-2009)
