Part Information

RDR - CARQUEST RADIATORS

MFG Code: RDR
Part Number: 432316

Description

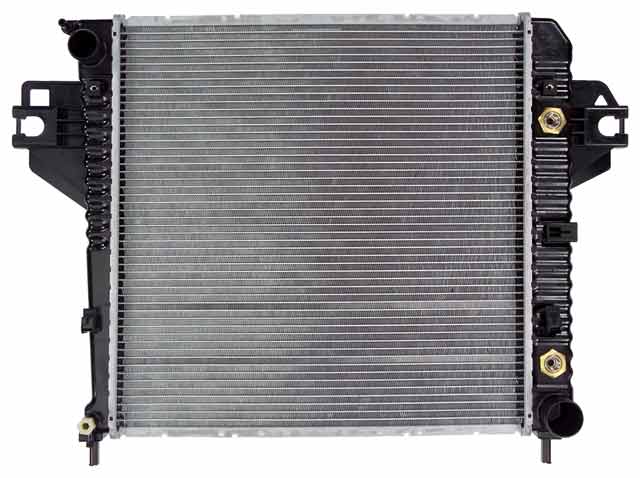

RADIATOR

Specifications
Transmission Oil Cooler Type: Plate Oil Cooler
Core Height (in): 19.744094488
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (in): 1.0236220472
Core Width (in): 20
Down Flow Or Cross Flow Type: Cross Flow
Engine Oil Cooler Included: No
Inlet Diameter (in): 1.4960629921
Outlet Diameter (in): 1.811023622
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (in): 12.007874016
Transmission Oil Cooler Included: Yes
USA Warranty: LIMITED LIFETIME REPLACEMENT

Features & Benefits
  • OE-comparable mounting provisions ensure precise, drop-in fitment into your vehicle
  • OE-comparable aluminum tubes and cooling fins to ensure sufficient cooling surface area
  • Premium high strength aluminum tubes to for operational stability and efficiency
  • Tanks manufactured from Super Heat-resistant, high density polymer plastic for added protection against extreme engine temperatures
  • Severe hot and cold temperature testing to verify durability in summer and winter weather conditions
  • Accelerated high pressure and temperature flow testing to ensure reliability in operating conditions
  • Individual leak-tested Oil Coolers and Fittings during assembly process
  • Individual leak-testing for every assembled radiator as verification of complete sealing
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Jeep - Liberty V6 3.7 (2002-2006)
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
