CARQUEST

CARQUEST Auto Parts

Part Information

UJ - CARQUEST U-JOINTS

All images...

MFG Code: UJ
Part Number: 5-3147X

Description

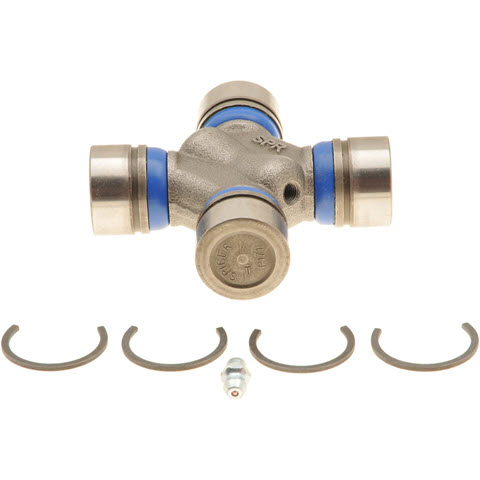

UNIVERSAL JOINT KIT

Specifications
Bearing Cap Type: Round
Color: Blue
Greasable: Yes
Material: Steel
Pre Greased: No
Seal Material: Rubber
Snap Ring Type: Internal
Type: ISR Style
USA Warranty: LIMITED LIFETIME REPLACEMENT

Features & Benefits
  • Nitrile long-life seals that resist heat and maintain lubrication at all speeds.
  • Spicer is the professional installers brand of choice for Driveshaft components.
  • OEM quality universal joints.
  • Journal crosses that are manufactured from high-quality alloy forgings and heat treated for maximum life.
  • Exceptional design and a patented manufacturing process.
  • Better balance capability, reduced driveline vibration and lower maintenance costs.
  • Bearing cups are case hardened inside and out for increased durability, ruggedness, and strength.
  • Spicer 10 Series parts last 39% longer than the competition!* *Based on samples tested.
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Buick - Cars (1959-1996), LD Trucks (2004-2007)
  • Cadillac - Cars (1950-1996), LD Trucks (1999-2020)
  • Chevrolet - Cars (1971-2002), LD Trucks (1972-2020), Vans (1967-2014)
  • Chrysler - Aspen (2007-2009) - Rear Driveshaft at Rear Axle, (2007-2009) - Rear Driveshaft at Transmission
  • Dodge - Durango (2004-2009) - Rear Driveshaft at Rear Axle, (2004-2009) - Rear Driveshaft at Transmission, V8 5.2 (2000) - Rear Driveshaft at Rear Axle, V8 5.2 (2000) - Rear Driveshaft at Transmission; Ram Trucks (2000-2010) - Front Driveshaft at Front Axle, (2007-2010) - Front Driveshaft - CV at Transfer Case; Ramcharger (1974-1981) - Front Driveshaft - CV at Transfer Case; W-Series (1975-1993) - Front Driveshaft - CV at Transfer Case
  • Ford - Bronco (1987) - Rear Driveshaft - CV at Transmission, (1989) - Front Driveshaft - CV at Transfer Case; F-Series Pickups (1981) - Rear Driveshaft at Rear Axle, (1981) - Rear Driveshaft at Transmission, (1987-1993) - Front Driveshaft - CV at Transfer Case; LTD II (1979) - Rear Driveshaft at Transmission; Thunderbird (1968-1971) - Rear Driveshaft - CV at Rear Axle, (1968-1971) - Rear Driveshaft - CV at Transmission, (1979) - Rear Driveshaft at Transmission
  • GMC - LD Trucks (1971-2020), Vans (1967-2014)
  • Hummer - H2 (2003-2009) - Front Driveshaft at Front Axle, (2003-2009) - Front Driveshaft at Transfer Case
  • Isuzu - Ascender (2003-2008) - Rear Driveshaft at Rear Axle, (2003-2008) - Rear Driveshaft at Transmission, (2008) - Front Driveshaft at Front Axle; Hombre (1996-2000) - Rear Driveshaft at Rear Axle, (1996-2000) - Rear Driveshaft at Transmission, (1997-1999) - Rear Driveshaft at Support Bearing
  • Jeep - TJ (2003-2006) - Rear Driveshaft at Transmission; Wrangler (2003-2006) - Rear Driveshaft at Transmission
  • Lincoln - Continental (1977-1979) - Rear Driveshaft - CV at Rear Axle, (1977-1979) - Rear Driveshaft - CV at Transmission; Mark III (1969-1971) - Rear Driveshaft - CV at Rear Axle, (1969-1971) - Rear Driveshaft - CV at Transmission
  • Mercury - Cougar (1979) - Rear Driveshaft at Transmission
  • Oldsmobile - Cars (1954-1992), LD Trucks (1991-2004)
  • Plymouth - Trailduster (1974-1981) - Front Driveshaft - CV at Transfer Case
  • Pontiac - Cars (1956-2002)
  • Saab - 9-7x (2005-2007) - Rear Driveshaft at Rear Axle, (2005-2007) - Rear Driveshaft at Transmission, (2006-2007) - Front Driveshaft at Front Axle
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
