Part Information

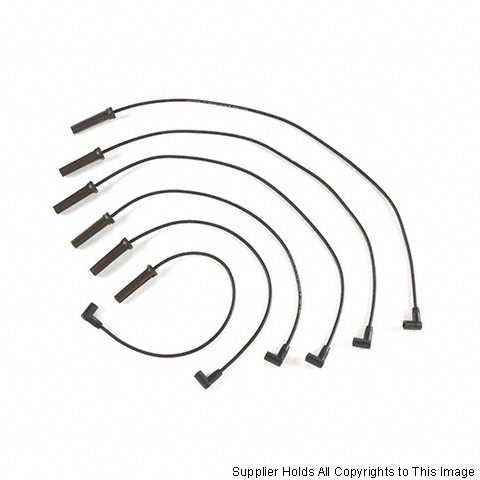

WIR - CARQUEST WIRE SETS

All images...

MFG Code: WIR
Part Number: 35-6143

Description
IGN WIRES-PRO SERIES

Specifications
Distributor Coil End Terminal Type: Female
Insulation Color: Black
Insulation Material: Silicone
Insulation Outside Diameter (in): 0.2755
Noise Suppression Type: Yes
Outside Diameter (mm): 7
Resistance (Ohms): 5.5K
Spark Plug Boot Material: Silicone
Spark Plug End Boot Color: Brown
Spark Plug End Boot Degree (deg): 180
Spark Plug End Boot Quantity Straight (deg): 6
Spark Plug End Terminal Type: Female
Spark Plug Wire Resistance (Ohms): 5.5K
Universal Or Specific Fit: Specific
Wire 1 Length (in): 26.96845
Wire 2 Length (in): 26.96845
Wire 3 Length (in): 28.93695
Wire 4 Length (in): 35.62985
Wire 5 Length (in): 37.20465
Wire 6 Length (in): 39.17315
Wire Gauge Measurement (mm): 7
Wire Separators Included: No
Core Material: Mag
Distributor Coil End Boot Degree (deg): 90
Distributor Coil End Boot Type: Silicone
USA Warranty: LIMITED LIFETIME REPLACEMENT

Features & Benefits
  • SAEJ2031 Class E cable resist heat (428 Deg. F), cold (-104 Deg. F), electrical interference, abrasion and oil.
  • Stainless steel magnetic winding delivers maximum voltage to the spark plug for more powerful, and longer spark resulting in optimum engine performance while reducing the chance for misfire, and eliminating radio static.
  • 100% Pure silicone external insulation resists oil penetration, for lifetime protection against wire set failure.
  • EPDM inner insulation stops power-robbing voltage leaks.
  • With Magnetic-impregnated Kevlar internal conductors - durable and break resistant
  • Engineered to meet OEM tolerances using variable pitch wire winding, creating better resistance to electric magnetic interference (E.M.I resistance).
  • Excellent interference suppression and consistent performance
  • Easy lock terminals for more convenient installation.
  • Thick silicon outer jacket for excellent heat resistance. Insulating EPDM based compound inner jacket helps minimize voltage drop and enhance durability.
  • Broad coverage available for most vehicles on the road today
  • Include grease pack to ensure easy installation and removal
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Buick - Century (2000-2005); Rendezvous (2002-2003), V6 3.4 (2004-2005)
  • Chevrolet - Impala V6 3.4 (2000-2005); Lumina (2000-2001); Malibu (2000-2003); Monte Carlo V6 3.4 (2000-2005); Venture (2000-2005)
  • Oldsmobile - Alero V6 3.4 (1999-2004); Silhouette (2000-2004)
  • Pontiac - Aztek (2001-2005); Grand Am V6 3.4 (1999-2005); Grand Prix V6 3.1 (2000-2003); Montana (2000-2004), V6 3.4 (2005); Trans Sport (1997-1998)
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
