WIR - CARQUEST WIRE SETS
All images...
|
|
MFG Code: WIR
Part Number: 35-8158
Description

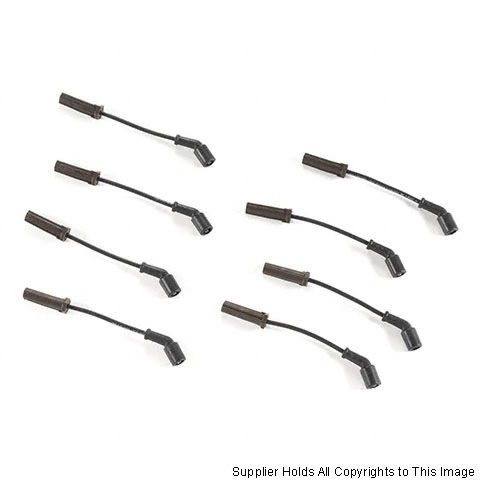

IGN WIRE SET
Specifications
Core Material: |
Mag |
Distributor Coil End Boot Degree (deg): |
135 |
Distributor Coil End Boot Type: |
Silicone |
Distributor Coil End Terminal Type: |
Male |
Insulation Color: |
Black |
Insulation Material: |
Silicone |
Insulation Outside Diameter (in): |
0.2755 |
Noise Suppression Type: |
Yes |
Outside Diameter (mm): |
7 |
Resistance (Ohms): |
5.5K |
Spark Plug Boot Material: |
Silicone |
Spark Plug End Boot Color: |
Brown |
Spark Plug End Boot Degree (deg): |
180 |
Spark Plug End Boot Quantity Straight (deg): |
6 |
Spark Plug End Terminal Type: |
Female |
Spark Plug Wire Resistance (Ohms): |
5.5K |
Universal Or Specific Fit: |
Specific |
Wire 5 Length (in): |
10.03935 |
Wire Gauge Measurement (mm): |
7 |
Wire Separators Included: |
No |
USA Warranty: |
LIMITED LIFETIME REPLACEMENT |
|
|
Features & Benefits
- SAEJ2031 Class E cable resist heat (428 Deg. F), cold (-104 Deg. F), electrical interference, abrasion and oil.
- Stainless steel magnetic winding delivers maximum voltage to the spark plug for more powerful, and longer spark resulting in optimum engine performance while reducing the chance for misfire, and eliminating radio static.
- 100% Pure silicone external insulation resists oil penetration, for lifetime protection against wire set failure.
- EPDM inner insulation stops power-robbing voltage leaks.
- With Magnetic-impregnated Kevlar internal conductors - durable and break resistant
- Engineered to meet OEM tolerances using variable pitch wire winding, creating better resistance to electric magnetic interference (E.M.I resistance).
- Excellent interference suppression and consistent performance
- Easy lock terminals for more convenient installation.
- Thick silicon outer jacket for excellent heat resistance. Insulating EPDM based compound inner jacket helps minimize voltage drop and enhance durability.
- Broad coverage available for most vehicles on the road today
- Include grease pack to ensure easy installation and removal
|
MSDS Sheets
- No MSDS sheet available
|
|
Application Summary
- Cadillac - Escalade (2002-2014), V8 6.0 (2009-2013), V8 6.2 (2013); Escalade ESV (2003-2014); Escalade EXT (2002-2013)
- Chevrolet - Avalanche (2009-2013); Avalanche 1500 (2002-2006); Camaro V8 6.2 (2010-2015), V8 7.0 (2014-2015); Caprice (2011), V8 6.0 (2012-2014); Colorado V8 5.3 (2009-2012); Corvette V8 6.2 (2010-2013), V8 7.0 (2010-2013); Express Vans (2017), V8 4.8 (2009-2017), V8 5.3 (2009-2014), V8 6.0 (2009-2019); Impala V8 5.3 (2009); Silverado Pickups (1999-2006), V8 4.8 (1999-2013), V8 5.3 (1999-2013), V8 6.0 (2001-2019), V8 6.2 (2009-2013); Silverado 1500 Classic V8 4.8 (2007), V8 5.3 (2007), V8 6.0 (2007); Silverado 1500 HD Classic (2007); Silverado 2500 HD Classic V8 6.0 (2007); Silverado 3500 Classic V8 6.0 (2007); Suburban 3500 HD (2016); Suburbans (2000-2014), V8 6.0 (2001-2006); SS (2014-2016); Tahoe (2001-2014), V8 4.8 (2000), V8 5.3 (2000); Trailblazer V8 6.0 (2009)
- GMC - Canyon V8 5.3 (2009-2012); Envoy V8 5.3 (2009); Savana Vans V8 4.8 (2009-2017), V8 5.3 (2009-2014), V8 6.0 (2009-2020); Sierra Pickups (1999-2020), V8 4.8 (1999-2013), V8 5.3 (1999-2013), V8 6.0 (2001-2019), V8 6.2 (2009-2013); Sierra 1500 Classic V8 4.8 (2007), V8 5.3 (2007), V8 6.0 (2007); Sierra 1500 HD Classic (2007); Sierra 2500 HD Classic V8 6.0 (2007); Sierra 3500 Classic V8 6.0 (2007); Yukons (2000-2014), V8 4.8 (2000), V8 5.3 (2000-2009), V8 6.0 (2001-2009), V8 6.2 (2009)
- Hummer - H2 (2003-2009); H3 V8 5.3 (2009-2010); H3T V8 5.3 (2009-2010)
- Pontiac - G8 V8 6.0 (2009), V8 6.2 (2009)
- Saab - 9-7x V8 5.3 (2009), V8 6.0 (2009)
|
