NGK - NGK SPARK PLUGS
All images...
|
|
MFG Code: NGK
Part Number: 94374
Description

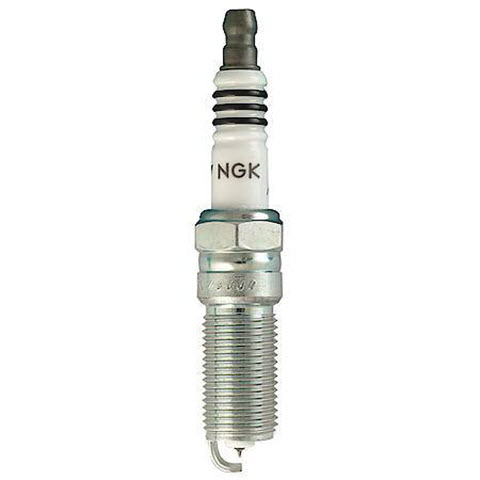

NGK IRIDIUM IX PLUG
Specifications
| Center Electrode Core Material: |
Copper Core |
| Center Electrode Tip Material: |
Iridium |
| Ground Configuration: |
Standard |
| Ground Electrode Core Material: |
Nickel Core |
| Ground Electrode Quantity: |
1 |
| Ground Electrode Tip Design: |
Taper Cut |
| Hex Size (in): |
5/8 |
| Insulator Height: |
52.50 |
| Manufacturer Heat Range: |
6 |
| Pre-Gap Size (in): |
.032 |
| Reach (in): |
25.00 |
| Resistance (Ohms): |
5000 |
| Seat Type: |
Tapered |
| Thread Diameter (mm): |
14.00 |
| USA Warranty: |
60 DAY REPLACEMENT IF DEFECTIVE |
|
|
|
Features & Benefits
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
|
MSDS Sheets
- No MSDS sheet available
|
|
|
Application Summary
- Buick - Envision (2016), L4 2.0 (2017-2020); Regal L4 2.0 (2014-2017); Regal Sportback L4 2.0 (2018-2020); Regal TourX (2018-2020)
- Cadillac - ATS L4 2.0 (2013-2019); CTS L4 2.0 (2014-2019); CT6 L4 2.0 (2016-2018)
- Chevrolet - Camaro L4 2.0 (2016-2023); Equinox L4 2.0 (2018-2020); Malibu L4 2.0 (2013-2022); Traverse L4 2.0 (2018-2019)
- Ford - Bronco (2021-2024); Bronco Sport (2021-2024); EcoSport (2022), L4 2.0 (2018-2021); Edge (2019-2024), L4 2.0 (2012-2018), V6 2.7 (2015-2018); Escape L3 1.5 (2020-2022), L4 2.0 (2013-2022); Expedition (2015-2021); Explorer (2024), L4 2.0 (2012-2015), L4 2.3 (2016-2023), V6 3.0 (2020-2023), V6 3.5 (2013-2019); F-Series Pickups V6 2.7 (2015-2024), V6 3.5 (2011-2021); Fiesta (2011-2013), L4 1.6 (2014-2019); Flex V6 3.5 (2010-2019); Focus L4 2.0 (2012-2018), L4 2.3 (2016-2018); Fusion L4 2.0 (2013-2020), V6 2.7 (2017-2019); GT (2017-2020); Maverick L4 2.0 (2022-2024); Mustang L4 2.3 (2015-2023); Police Interceptor Sedan V6 3.5 (2013-2019); Police Interceptor Utility V6 3.0 (2020-2024), V6 3.5 (2014-2019); Ranger (2019-2023), L4 2.3 (2024-2025), V6 3.0 (2024-2025); Special Service Police Sedan (2014-2018); Taurus (2017-2019), L4 2.0 (2013-2016), V6 3.5 (2010-2016); Transit Connect (2023), L4 2.0 (2019-2022); Transit-150 V6 3.5 (2015-2024); Transit-250 V6 3.5 (2015-2024); Transit-350 V6 3.5 (2015-2024); Transit-350 HD V6 3.5 (2015-2024)
- GMC - Terrain L4 2.0 (2018-2020)
- Jaguar - XE L4 2.0 (2017); XF L4 2.0 (2013-2015)
- Land Rover - Discovery Sport (2015-2017); LR2 (2013-2015); Range Rover Evoque (2012-2017)
- Lincoln - Aviator (2020-2024); Continental V6 2.7 (2017-2020), V6 3.0 (2017-2020); Corsair (2020), L4 2.0 (2021-2022), L4 2.3 (2021-2022); MKC (2015-2019); MKS V6 3.5 (2010-2016); MKT L4 2.0 (2013-2016), V6 3.5 (2010-2019); MKX V6 2.7 (2016-2018); MKZ L4 2.0 (2013-2020), V6 3.0 (2017-2020); Nautilus (2019-2021), L4 2.0 (2022-2023); Navigator (2015-2021)
- Mazda - CX-7 (2007-2009); 3 L4 2.3 (2007-2009); 6 L4 2.3 (2006-2007)
|
Product Bulletins
- No bulletins available
|
|
|
Interchange Numbers
- No interchange numbers available
|
Specification Documents
- No specifications available
|
|
