CARQUEST

CARQUEST Auto Parts
Part Information

RCH - RCH - CARQUEST RED CHASSIS

All images...

 MFG Code: RCH
Part Number: DW-K7241

Description

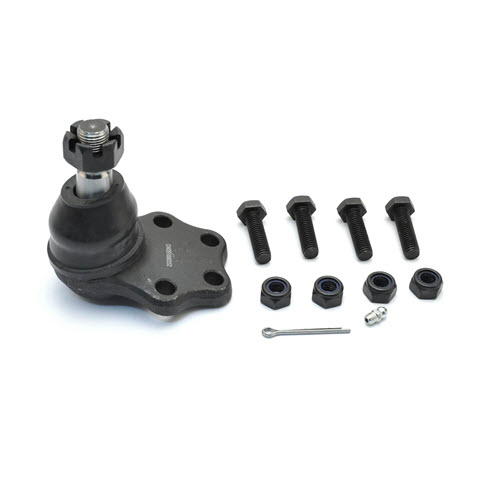

BALL JOINT

Specifications
Adjustable: No
Adjustment Range: 46 degrees
Bushings Included: No
Ball Joint Assembly: Yes
Castle Nut Included: Yes
Cotter Pin Hole: Yes
Cotter Pin Included: Yes
Dust Boot Included: Yes
Dust Boot Material: CR
Greasable: No
Grease Fitting Included: Yes
Height (mm): 100.3
Material: Housing: 45#, Ball Pin: 40Cr
Maximum Outside Diameter (mm): 79.3
Mount Plate Included: No
Mounting Bolt Length (mm): 41.4
Mounting Bolts Included: Yes
Mounting Hardware Included: Yes
Mounting Hole Quantity: 4
Mounting Type: Bolt-in
Nuts Included: Yes
Stud Thread Diameter (mm): 15.87
Stud Thread Length (mm): 25
Stud Thread Pitch (mm): 1.41
Stud Type: Threaded
Suspension Grade Type: Standard
Tapered Stud: Yes
Washers Included: No
USA Warranty: LIMITED LIFETIME REPLACEMENT

Features & Benefits
  • Meets or exceeds OE performance specifications
  • Premium Polychloroprene boot provides extended temperature range and better wear resistance
  • Test-proven stud material helps prevent premature stud failure
  • Provides premium gauge steel construction for strength and durability
  • Performance tested to ensure durability
MSDS Sheets
- No MSDS sheet available
Application Summary
  • Dodge - Dakota (1997-1999) - Front Lower; Durango (1999) - Front Lower
Product Bulletins
- No bulletins available
Interchange Numbers
- No interchange numbers available
Specification Documents
- No specifications available
