WIR - CARQUEST WIRE SETS
All images...
|
|
MFG Code: WIR
Part Number: 35-8104
Description

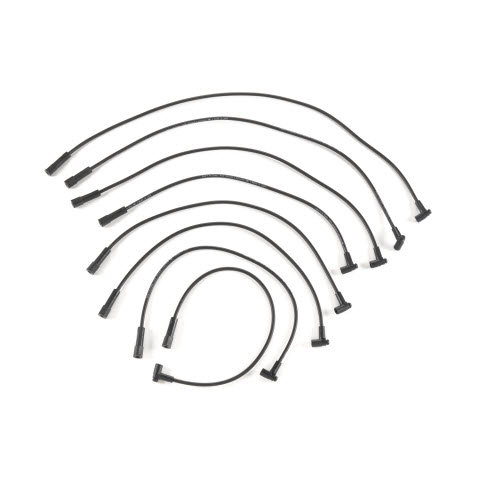

IGN WIRES-PRO SERIES
Specifications
| Insulation Outside Diameter (in): |
0.3149 |
| Noise Suppression Type: |
Yes |
| Outside Diameter (mm): |
8 |
| Resistance (Ohms): |
5.5K |
| Spark Plug Boot Material: |
Silicone |
| Spark Plug End Boot Color: |
Black |
| Spark Plug End Boot Degree (deg): |
180 |
| Spark Plug End Boot Quantity Straight (deg): |
8 |
| Spark Plug End Terminal Type: |
Female |
| Spark Plug Wire Resistance (Ohms): |
5.5K |
| Universal Or Specific Fit: |
Specific |
| Wire 5 Length (in): |
32.87395 |
| Wire Gauge Measurement (mm): |
8 |
| Wire Separators Included: |
No |
| Core Material: |
Mag |
| Distributor Coil End Boot Degree (deg): |
90 |
| Distributor Coil End Boot Type: |
TPV |
| Distributor Coil End Terminal Type: |
Female |
| Insulation Color: |
Black |
| Insulation Material: |
Silicone |
| USA Warranty: |
LIMITED LIFETIME REPLACEMENT |
|
|
|
Features & Benefits
- SAEJ2031 Class E cable resist heat (428 Deg. F), cold (-104 Deg. F), electrical interference, abrasion and oil.
- Stainless steel magnetic winding delivers maximum voltage to the spark plug for more powerful, and longer spark resulting in optimum engine performance while reducing the chance for misfire, and eliminating radio static.
- 100% Pure silicone external insulation resists oil penetration, for lifetime protection against wire set failure.
- EPDM inner insulation stops power-robbing voltage leaks.
- With Magnetic-impregnated Kevlar internal conductors - durable and break resistant
- Engineered to meet OEM tolerances using variable pitch wire winding, creating better resistance to electric magnetic interference (E.M.I resistance).
- Excellent interference suppression and consistent performance
- Easy lock terminals for more convenient installation.
- Thick silicon outer jacket for excellent heat resistance. Insulating EPDM based compound inner jacket helps minimize voltage drop and enhance durability.
- Broad coverage available for most vehicles on the road today
- Include grease pack to ensure easy installation and removal
|
MSDS Sheets
- No MSDS sheet available
|
|
|
Application Summary
- Chevrolet - B60 V8 6.0 (1980-1982), V8 7.0 (1980-1982); C/K Series Pickups V8 7.4 (1977-1982); C/K Series Suburbans V8 7.4 (1977-1982); K5 Blazer V8 7.4 (1977-1978); Medium Duty C-Series V8 6.0 (1977-1982), V8 7.0 (1977-1982), V8 7.4 (1980); P-Series Vans V8 7.4 (1977-1982)
- GMC - B6000 V8 6.0 (1980-1982), V8 7.0 (1980-1982); C-Series Pickups V8 7.4 (1979-1982); C/K Series Pickups V8 7.4 (1977-1982); C/K Series Suburbans V8 7.4 (1977-1982); Medium Duty C-Series V8 6.0 (1979-1982), V8 7.0 (1979-1982), V8 7.4 (1980)
|
Product Bulletins
- No bulletins available
|
|
|
Interchange Numbers
- No interchange numbers available
|
Specification Documents
- No specifications available
|
|
